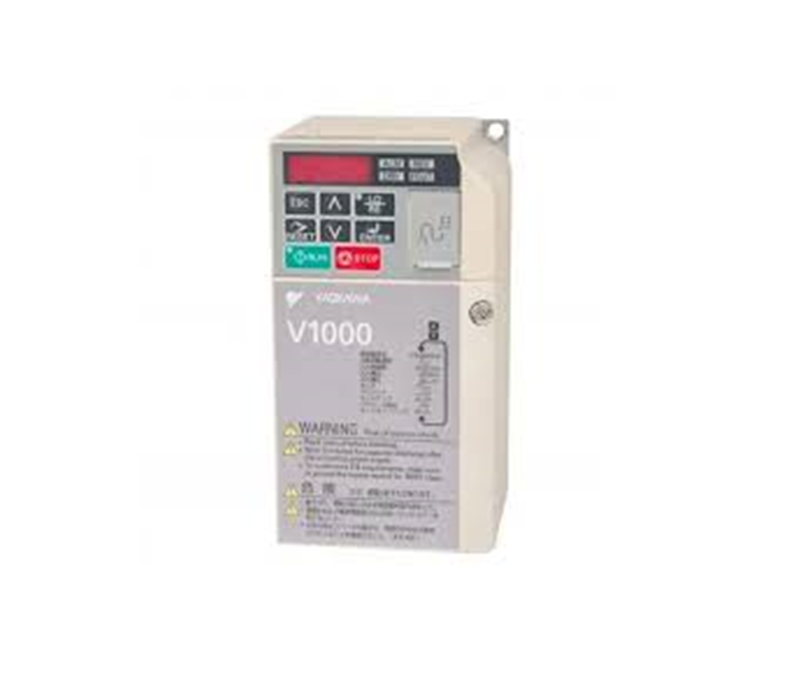

CIMR-VB4A0023FBA Yaskawa Variable Speed Drive

Model: CIMR – Drive

V – V1000 Series

Region Code: B – China

Voltage Class: 4 – 3-phase, 380-480 Vac

Customized Specifications: A – Standard model

Three-Phase 400 V: 0023

Max. Motor Capacity kW: 11

Rated Output Current A: 23.0

Enclosure Type: F – IP20/NEMA Type 1

Shipping Weight: 9 KG

CIMR-VB4A0023FBA is a model of Yaskawa’s Variable Speed Drive, which is also known as a variable frequency

drive or VFD. This drive control speed and torque of three-phase AC motors, providing greater energy efficiency and

control than traditional methods.

Some key features of the CIMR-VB4A0023FBA include:

Input voltage range of 380-480V AC, 50/60 Hz.

Output voltage range of 0-480V AC, 0-400 Hz.

Rated output current of 23 amps.

Overload capacity of 150% for 60 seconds.

Built-in RS-485 communication port for remote monitoring and control.

UL/cUL and CE certified for safety and compliance with international standards.

Yaskawa VFDs known for their reliability, durability, ease of use. They used in industrial applications, including

HVAC, water treatment, manufacturing. Th improve energy efficiency and productivity, reducing maintenance costs.
