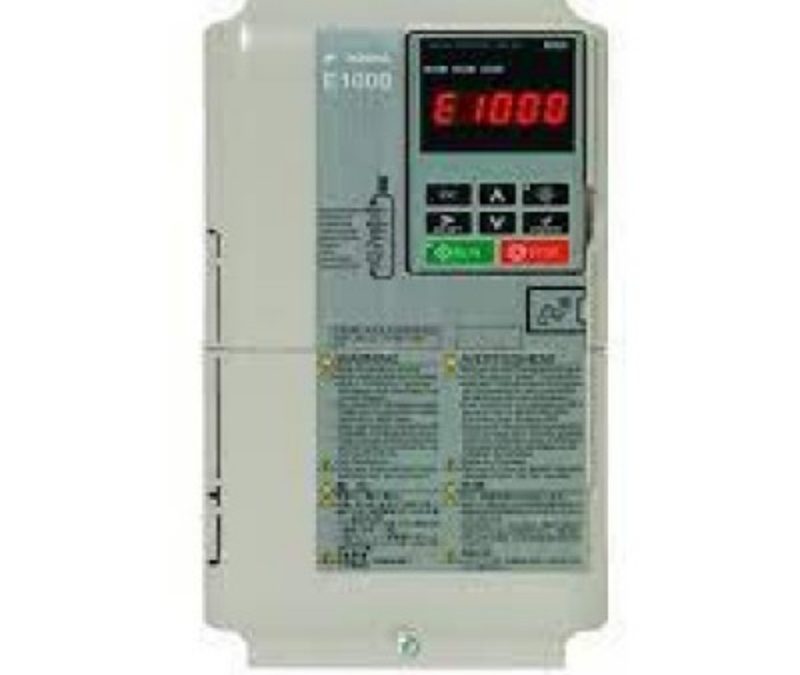

CIMR-ET4A0018FAA YASKAWA AC drive fan and pump
Model: CIMR-ET4A0018FAA YASKAWA AC drive fan and pump
Type Variable Frequency Dr…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Type | Variable Frequency Drives |
| Application | Fan, Hvac, Pump, Compressor |
| Power supply phases | 3-phase |
| Power supply voltage | 380…440VAC |
| Rated input frequency | 50Hz, 60Hz |
| Rated input current | 20A (LD) |
| Applicable motor capacity | 7.5kW (LD) |
| Rated output current | 17.5A (LD) |
| Rated output voltage | 380…440VAC |
| Load | Light duty (LD) |
| Max. output frequency | 200Hz |
| Overload capacity | 120% at 60 s (LD) |
| Drive designation type | Standard inverter |
| Keypad | Built-in |
| Braking unit | No |
| Braking resistor | No |
| AC reactor | No |
| DC reactor | No |
| EMC filter | No |
| Digital inputs | 8 |
| Analog inputs | 3 |
| Pulse train inputs | 1 |
| Transistor outputs | No |
| Relay outputs | 4 |
| Analog outputs | 2 |
| Pulse train outputs | 1 |
| Control method / control mode | V/f Control, Vector control for PM |
| Function | Ground fault protection, Heatsink overheat protection, Momentary Overcurrent Protection, Momentary power loss ride-thru, Motor Protection, Overload Protection, Overvoltage Protection, Stall prevention, Undervoltage Protection, Display during charging |
| Communication interface | RS485/RS422 |
| Communication protocol | CANopen, CC-link, DeviceNet, LonWorks, Mechatrolink-II, Profibus, Memobus, Modbus RTU |
| Connection with PC | USB port |
| Electric connection method | Screw terminal |
| Mounting method | Wall-panel mounting |
| Built-in cooling Fan | Yes |
| Operation ambient | Standard |
| Ambient temperature | -10…40°C |
| Ambient humidity | 95% max. |
| Approx. weight | 3.9kg |
| Overall width | 140mm |
| Overall height | 260mm |
| Overall depth | 167mm |
