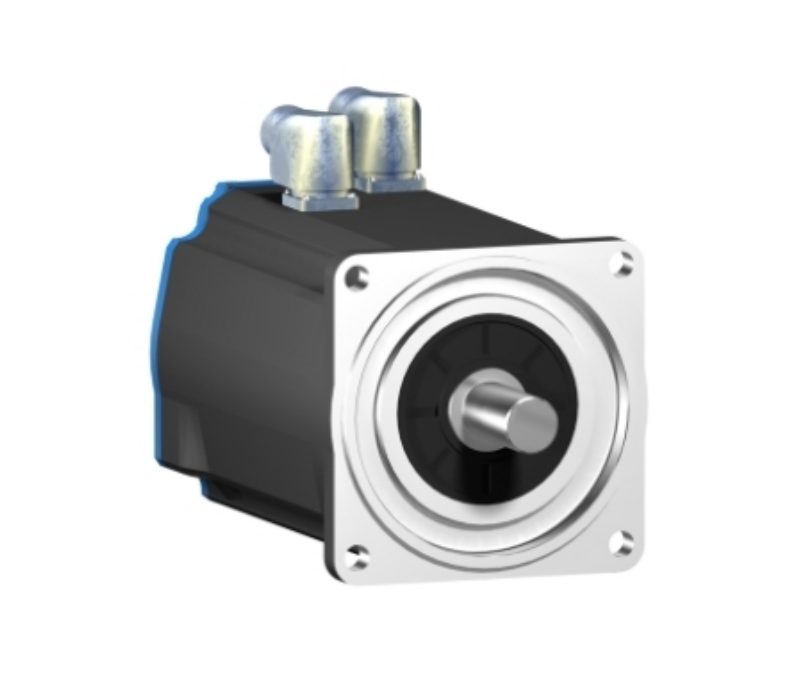

BSH1402P31A2A Schneider Servo Motor
Model: BSH1402P31A2A Schneider Servo Motor
Main Device short name BSH…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Device short name | BSH |
|---|---|
| Product or component type | Servo motor |
| Maximum mechanical speed | 4000 rpm |
| Shaft end | Untapped |
|---|---|
| IP degree of protection | IP50 standard |
| Speed feedback resolution | 131072 points/turn |
| Holding brake | Without |
| Mounting support | International standard flange |
| Electrical connection | Rotatable right-angled connectors |
| Range compatibility | Lexium 15 Lexium 05 |
|---|---|
| supply voltage max | 480 V |
| Network number of phases | Three phase |
| Continuous stall current | 13.2 A |
| maximum continuous power | 4.2 W |
| Maximum permanent current | 44.1 A |
|---|---|
| Switching frequency | 4 kHz |
| Second shaft | Without second shaft end |
| Shaft diameter | 24 mm |
| Shaft length | 50 mm |
| Feedback type | Single turn SinCos Hiperface |
| Motor flange size | 140 mm |
| Number of motor stacks | 2 |
| Torque constant | 1.47 N.m/A at 120 °C |
| Back emf constant | 101 V/krpm at 120 °C |
| Number of motor poles | 10 |
| Rotor inertia | 12.68 kg.cm² |
| Stator resistance | 0.6 Ohm at 20 °C |
| Stator inductance | 7.4 mH at 20 °C |
| Stator electrical time constant | 12.33 ms at 20 °C |
| Maximum radial force Fr | 1680 N at 3000 rpm 1930 N at 2000 rpm 2430 N at 1000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| Type of cooling | Natural convection |
| Length | 272.5 mm |
| Centring collar diameter | 130 mm |
| Centring collar depth | 3.5 mm |
| Number of mounting holes | 4 |
| Mounting holes diameter | 11 mm |
| Circle diameter of the mounting holes | 165 mm |
| Net weight | 16.6 kg |
