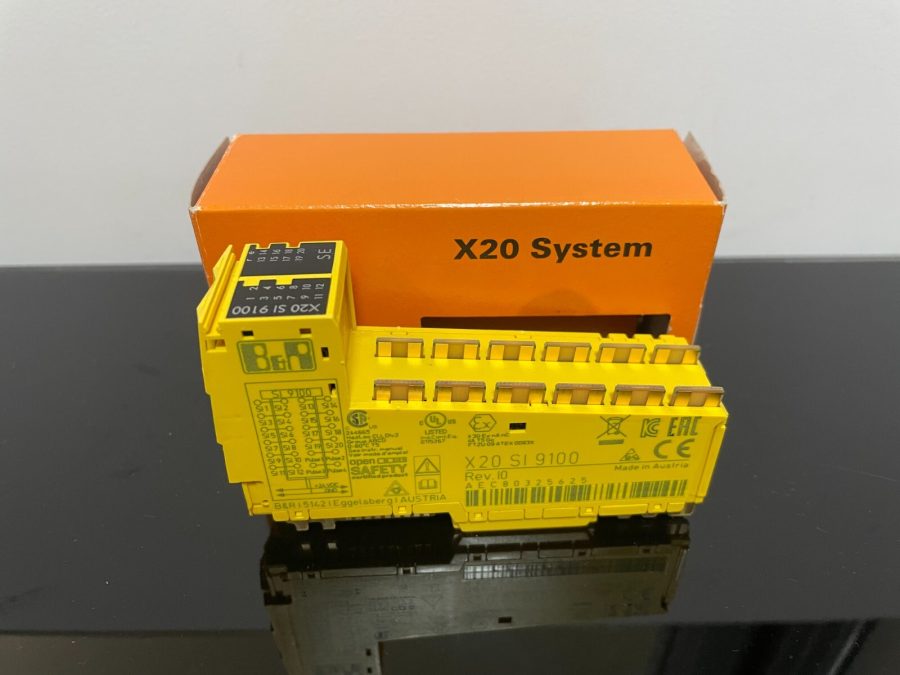

B&R X20SI9100 Safety Digital Input Module
Model: B&R X20SI9100 Safety Digital Input Module
Parameter Specification Br…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Parameter | Specification |
|---|---|
| Brand | B&R Industrial Automation |
| Model | X20SI9100 |
| Module Type | Safety Digital Input Module |
| Safe Digital Inputs | 20 channels (Type A) |
| Pulse Outputs | 4 channels Push-Pull |
| Rated Supply Voltage | 24 VDC |
| Voltage Tolerance | -15% / +20% |
| Input Type | Sink, Type 1 per EN 61131-2 |
| Hardware Input Filter | ≤150 µs |
| Software Input Filter | 0 ~ 500 ms configurable |
| Functional Safety | SIL3 / PL e / Cat.4 |
| Isolation | Channel to Bus isolated |
| Insulation Voltage | 500 Veff |
| Protection Degree | IP20 |
| Power Consumption | Bus 0.4W + I/O 1.6W |
| Operating Temp (Horizontal) | 0 ~ 60 °C |
| Operating Temp (Vertical) | 0 ~ 50 °C |
| Storage Temperature | -40 ~ 85 °C |
| Mounting Pitch | 25 ±0.2 mm |
| Max Altitude | 2000 m |
| Certifications | CE, UKCA, ATEX, UL, DNV, CCS |
