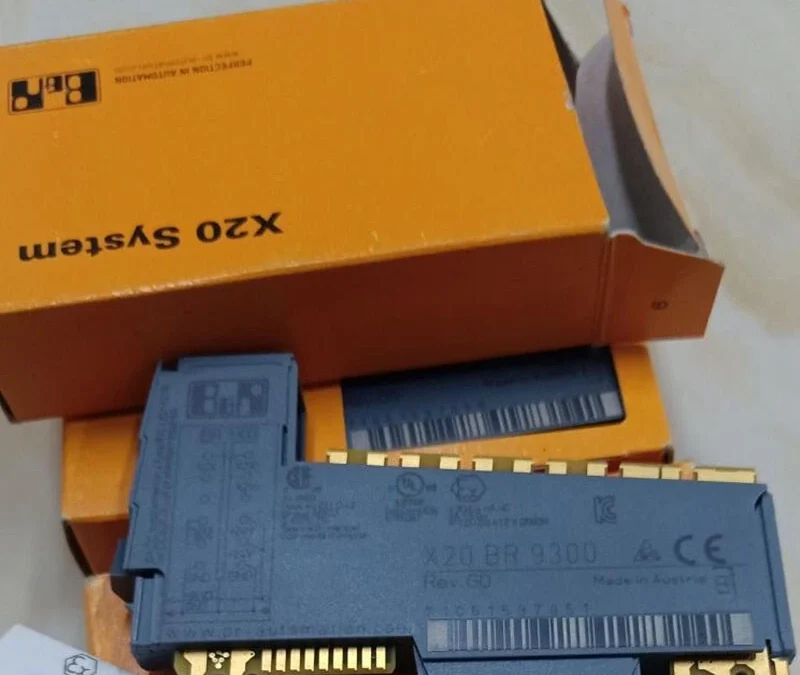

B&R X20BR9300 X2X Link Bus Receiver
Model: B&R X20BR9300 X2X Link Bus Receiver
Data Category Specific Par…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Data Category | Specific Parameters |
|---|---|
| Product Model | X20BR9300 |
| Brand | B&R |
| Product Type | X2X Link Bus Receiver (for X20 System) |
| Core Function | Connects X20 System to X2X Link; supplies power for X2X Link and internal I/O |
| Supply Voltage | 24 VDC (-15%/+20%) (for X2X Link and I/O power supply) |
| Input Current | Max. 0.7 A |
| Nominal Output Power (X2X Link) | 7 W (75% of nominal power in parallel operation) |
| Power Consumption | X2X Link supply: 1.62 W; Internal I/O: 0.6 W |
| Protection Features | Integrated non-replaceable fuse; reverse polarity protection; short-circuit proof; temporary overload tolerance |
| Redundancy Support | Yes (via simultaneous operation of multiple supply modules) |
| Mounting Requirements | Only operable on the far-left slot; horizontal/vertical mounting allowed |
| Protection Rating | IP20 (EN 60529) |
| Operating Temperature Range | Horizontal mounting: -25…60 °C; Vertical mounting: -25…50 °C |
| Storage/Transport Temperature | -40…85 °C |
| Relative Humidity | Operation: 5-95% (non-condensing); Storage/Transport: 5-95% (non-condensing) |
| Max. Installation Altitude | 0-2000 m (no limitation); >2000 m (0.5°C ambient temp reduction per 100 m) |
| Status Indicators | X2X bus function, overload, operating state, module status (via LEDs) |
| Diagnostics Support | Yes (LED indicators + software diagnostics for module run/error, overload, X2X bus function) |
| Certifications | CE, UKCA, ATEX (Zone 2, II 3G Ex nA nC IIA T5 Gc IP20), UL/cULus (E115267), cCSAus (244665), EAC, KC |
| Required Accessories | X20BM01 (power supply bus module), X20TB12 (12-pin terminal block) |
| Included Components | X20 end cover plates (left: X20AC0SL1; right: X20AC0SR1) |
| Minimum Cycle Time | 100 μs |
| Minimum I/O Update Time | 2 ms |
| Pitch | 12.5 +0.2 mm |
