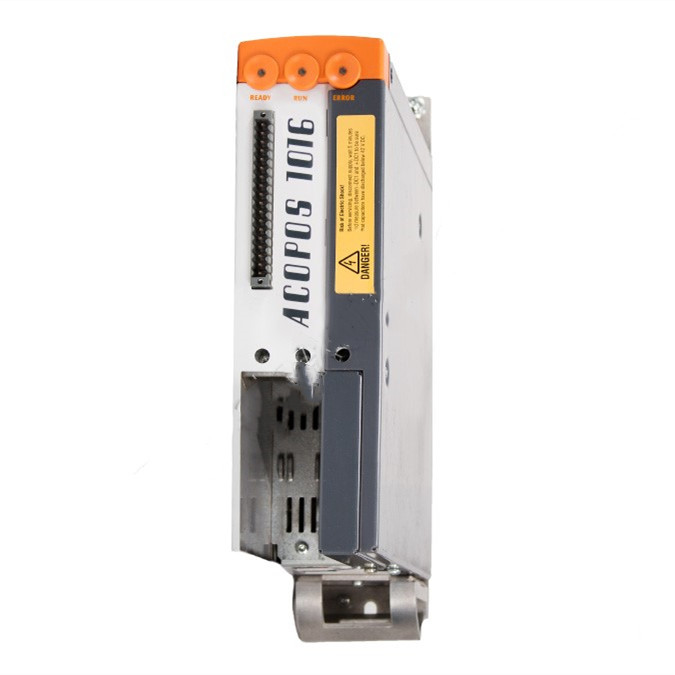

B&R ACOPOS 8V1016.00-2 Servo Drive
Model: B&R ACOPOS 8V1016.00-2 Servo Drive
Parameter Specification Br…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Parameter | Specification |
|---|---|
| Brand | B&R Industrial Automation |
| Model | 8V1016.00-2 |
| Series | ACOPOS |
| Nominal Power | 0.7 kW |
| Mains Input Voltage | 3×400–480 VAC ±10%; 3×230 VAC ±10% |
| Supply Frequency | 50/60 Hz ±4% |
| Continuous Output Current | 1.6 A |
| Peak Output Current | 5 A |
| Nominal Switching Frequency | 10 kHz |
| Switching Frequencies | 5 / 10 / 20 kHz |
| Integrated Line Filter | Yes, EN 61800-3 Category C3 |
| Integrated Braking Resistor | Yes |
| Safety Feature | Electronic secure restart inhibit |
| Plug-in Module Slots | 3 |
| Dimensions (W×H×D) | 58.5 × 257 × 220 mm |
| Weight | 2.5 kg |
| Protection Rating | IP20 |
| Operating Temperature | +5 … +40 °C (max. +55 °C derated) |
| Certifications | CE, UL/cULus, EAC, KC |
| Max. Motor Cable Length | 15 m |
