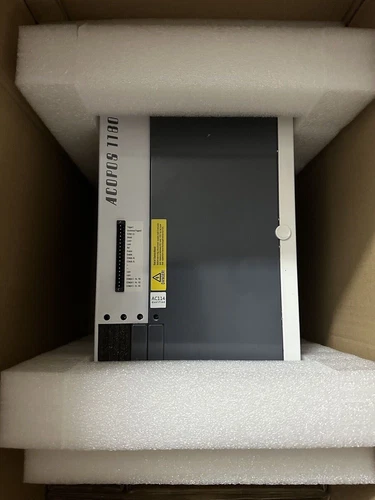

B&R 8V1180.00-2 is a 9kW 3-phase servo drive
Model: B&R 8V1180.00-2 is a 9kW 3-phase servo drive
Data Category Specific Par…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Data Category | Specific Parameters |
|---|---|
| Product Model | 8V1180.00-2 |
| Brand | B&R |
| Product Series | ACOPOS |
| Product Type | Servo Drive |
| Input Specifications | 3-phase 400-480 VAC ±10%; Frequency: 50/60 Hz ±4%; Permissible network: TT, TN |
| Rated Motor Power | 9 kW |
| Output Current | Continuous: 19 A; Peak: 50 A eff; Current derating: 1.9 A eff per 1000 m above 500 m |
| Switching Frequency | Nominal: 10 kHz; Optional: 5/10/20 kHz |
| DC Bus Parameters | Capacitance: 940 µF; Switch-on voltage: 455 VDC |
| 24 VDC Power Supply | Input voltage: 24 VDC +25%/-20%; Input capacitance: 40,000 µF; Max output current: 0.5 A |
| Braking Resistor | Internal peak power:14 kW, continuous power:0.4 kW; External min resistance:15 Ω, peak power:40 kW, continuous power:8 kW |
| I/O Interfaces | 3 limit switch/reference inputs, 1 enable input, 2 trigger inputs (all sink circuit, 24 VDC nominal) |
| Plug-in Module Slots | 4 slots (supports CAN, POWERLINK V2, encoder interfaces and I/O expansion modules) |
| Dimensions (W×H×D) | 200 mm × 375 mm × 234 mm |
| Net Weight | 10.1 kg |
| Protection Rating | IP20 (EN 60529); Pollution Degree 2 (EN 61800-5-1); Overvoltage Category II (EN 61800-5-1) |
| Operating Temperature | Nominal: 5-40 °C; Maximum: 55 °C |
| Storage/Transport Temperature | Storage: -25-55 °C; Transport: -25-70 °C |
| Relative Humidity | Operation: 5-85%; Storage: 5-95%; Transport: Max. 95% (40 °C) |
| Installation Altitude | Nominal: 0-500 m; Maximum: 2000 m |
| Key Protections | Overload, short circuit, ground fault protection; Motor insulation stress: Limit value curve A (IEC TS 60034-25:2004) |
| Certifications | CE, cULus (E225616), EAC, KC; Functional safety compliant |
| Max Motor Cable Length | 25 m |
| Key Features | Integrated line filter (EN 61800-3 Category C3); Electronic restart inhibit; LED status indicators (READY/RUN/ERROR) |
