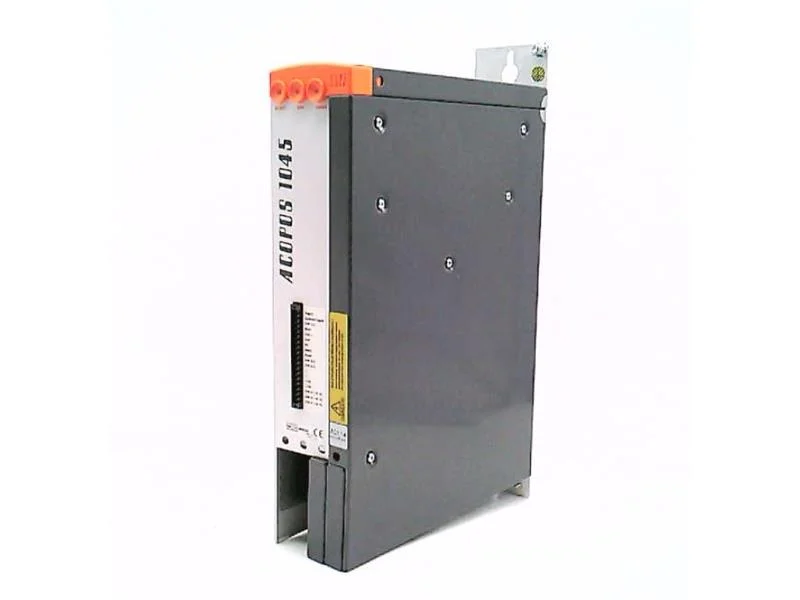

B&R 8V1045.00-2 ACOPOS Servo Drive Specification Sheet
Model: B&R 8V1045.00-2 ACOPOS Servo Drive Specification Sheet
Data Category Specific Par…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Data Category | Specific Parameters |
|---|---|
| Product Model | 8V1045.00-2 |
| Brand | B&R |
| Product Type | ACOPOS Servo Drive |
| Nominal Power 额定功率 | 2 kW |
| Mains Input Voltage | 3x 400-480 VAC ±10%; 3x 230 VAC ±10% (requires parameter adjustment) |
| Input Frequency | 50/60 Hz ±4% |
| Continuous Output Current | 4.4 A eff (400 VAC, 20 kHz switching frequency, 40°C, <500 m altitude) |
| Peak Output Current | 24 A eff |
| Switching Frequency | 5/10/20 kHz (nominal: 20 kHz) |
| Max Motor Output Frequency | 598 Hz (error triggered if exceeded for >0.5s) |
| DC Bus Capacitance | 235 µF |
| 24 VDC Power Supply | 24 VDC ±25%, max current consumption: 2.5 A + motor brake current |
| Integrated Components | Line filter (EN 61800-3 Category C3), braking resistor, electronic restart inhibit |
| Braking Resistor Specs | Peak power: 7 kW; Continuous power: 200 W |
| Plug-in Module Slots | 4 (supports CAN/POWERLINK/encoder/I/O modules) |
| Dimensions (W×H×D) | 70.5 mm × 375 mm × 235.5 mm |
| Net Weight | 4.1 kg |
| Protection Rating | IP20 (EN 60529) |
| Operating Temperature Range | 5…40°C (nominal); max 55°C (with current derating) |
| Storage/Transport Temperature | -25…55°C (storage); -25…70°C (transport) |
| Relative Humidity | 5…85% (operation); 5…95% (storage/transport, non-condensing) |
| Max Installation Altitude | 2000 m (0.44 A eff current reduction per 1000 m above 500 m) |
| Current Derating (Ambient Temp) | 0.13 A eff/°C (400 VAC, 20 kHz, >45°C); 0.13 A eff/°C (480 VAC, 20 kHz, >35°C) |
| Certifications | CE, UL/cULus (E225616), EAC, KC; Functional safety compliant |
| Motor Cable Length | Max 25 m |
| Terminal Cross Section | 0.25…4 mm² (flexible/fine-stranded wires with sleeves) |
| Pollution Degree | 2 (non-conductive pollution, EN 61800-5-1) |
| Overvoltage Category | II (EN 61800-5-1) |
| Power Dissipation | Approx. 180 W (nominal power, without braking resistor) |
| LED Indicators | READY (green), RUN (orange), ERROR (red) for diagnostics |
| Protective Measures | Overload, short circuit, ground fault protection; motor insulation stress control (IEC TS 60034-25) |
