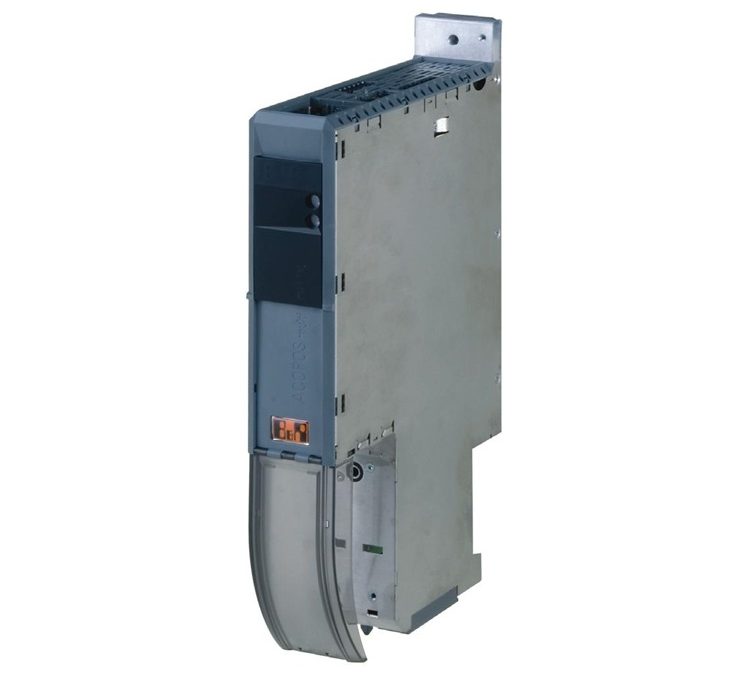

B&R 8BVE0500HW00.000-1 ACOPOSmulti Expansion Module Specification Sheet
Model: B&R 8BVE0500HW00.000-1 ACOPOSmulti Expansion Module Specification Sheet
Data Category Specific Par…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Data Category | Specific Parameters |
|---|---|
| Product Model | 8BVE0500HW00.000-1 |
| Brand | B&R |
| Product Type | ACOPOSmulti Expansion Module |
| Mounting Method | Wall mounting |
| Key Function | Distributes DC bus & 24 VDC power for ACOPOSmulti drive systems; connects ACOPOSremote/ACOPOSmotor |
| DC Bus Nominal Voltage | 750 VDC |
| Max Continuous Power (50A fuse) | 30 kW (40 A eff continuous current) |
| Continuous Power (20A fuse) | 12 kW (16 A eff continuous current) |
| Continuous Power (10A fuse) | 6 kW (8 A eff continuous current) |
| Peak Current (50A fuse) | 100 A |
| 24 VDC Supply Input | 25 VDC ±1.6% |
| 24 VDC Max Power Consumption | 5 W |
| 24 VDC Continuous Power (30A fuse) | 600 W |
| 24 VDC Continuous Power (12A fuse) | 240 W |
| Dimensions (W×H×D) | 53 mm × 317 mm × 263 mm (wall mounting) |
| Net Weight | Approx. 3.1 kg |
| Protection Rating | IP20 (EN 60529) |
| Operating Temperature Range | 5…40°C (nominal); max 55°C (with power derating) |
| Storage/Transport Temperature | -25…55°C (storage); -25…70°C (transport) |
| Relative Humidity | 5…85% (operation); 5…95% (storage/transport, non-condensing) |
| Max Installation Altitude | 4000 m (10% power reduction per 1000 m above 500 m) |
| Power Derating (Ambient >40°C) | 1.25% per °Kelvin |
| Monitoring Features | Thermal monitoring of fuse holders (LED indicators: OLDC/OL24/OLD/HLD/NLD); 2 alarm contacts (1 NC, 1 NO) |
| Fuse Requirements | DC bus: 2×14×51 mm fuses (10/20/50A, ultra-fast); 24VDC: 1×10×38 mm fuses (12/30A, fast-acting) |
| Certifications | CE, KC, UL/cULus (E225616, Power Conversion Equipment) |
| Permissible Mounting Orientations | Vertical hanging, horizontal lying (standing horizontally not permitted) |
| Max Distance Between Modules | 5 m (using shielded ACOPOSmulti 8BCA cables) |
| Terminal Cross Section | DC bus: 0.5…16 mm² (flexible/fine wire with sleeves); 24VDC: 0.25…6 mm² |
| Pollution Degree | 2 (non-conductive pollution, EN 61800-5-1) |
| Overvoltage Category | III (EN 61800-5-1) |
| Power Dissipation (Continuous Power) | 200 W |
