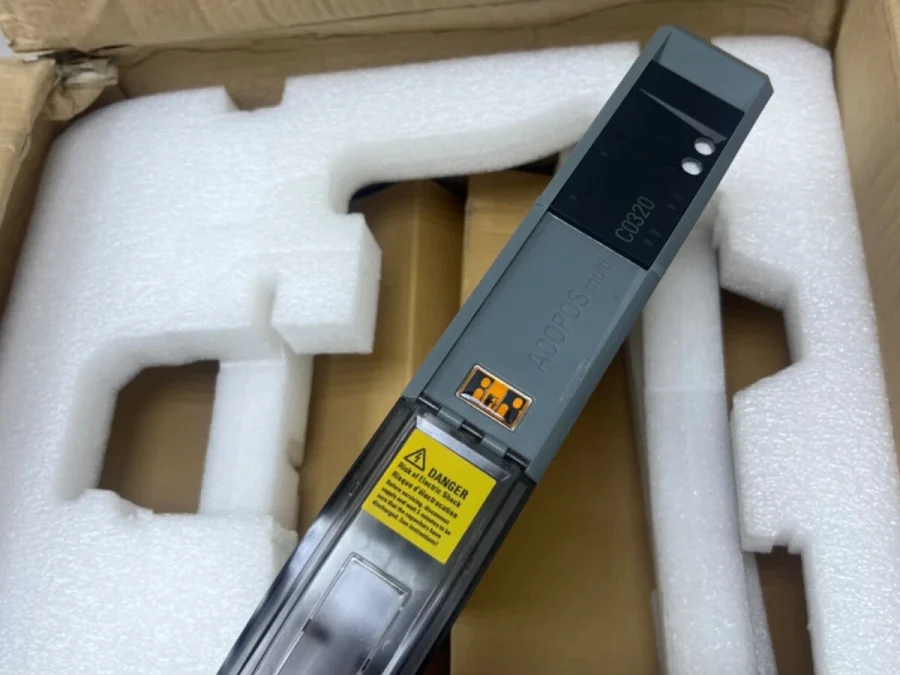

B&R 8B0C0320HW00.00A-1 ACOPOSmulti Auxiliary Supply Module
Model: B&R 8B0C0320HW00.00A-1 ACOPOSmulti Auxiliary Supply Module
Data Category Specific Par…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Data Category | Specific Parameters |
|---|---|
| Product Model | 8B0C0320HW00.00A-1 |
| Brand | B&R |
| Product Series | ACOPOSmulti |
| Product Type | Auxiliary Supply Module |
| Mounting Type | Wall mounting; Permitted orientations: vertical hanging, horizontal lying (horizontal standing not allowed) |
| DC Bus Connection | Nominal voltage: 750 VDC; Operating range: 260-800 VDC (continuous), 315-800 VDC (full power); Capacitance: 220 nF |
| 24 VDC Output | Continuous power: 800 W; Voltage: 24 VDC ±6% (315-800 VDC bus), 25 VDC*(UDC/315) (260-315 VDC bus); Continuous current: 32 A (DC bus mode), 30 A (external 24 VDC in mode) |
| 24 VDC Outputs (Dual) | Out 1: 30 A (electronic slow-blow protection, auto-reset); Out 2: 5 A (electronic slow-blow protection, auto-reset) |
| 24 VDC Input | Voltage range: 23-26 VDC (nominal 24 VDC); Max. continuous current: 30 A; Voltage drop: <0.5 V |
| Power Consumption | Max. continuous power dissipation: 880 W; Power loss: 22 W (0% load), 35 W (50% load), 80 W (100% load) |
| Dimensions (W×H×D) | 53 mm × 317 mm × 263 mm (wall mounting) |
| Net Weight | Approx. 3.3 kg |
| Protection Rating | IP20 (EN 60529); Pollution Degree 2 (EN 61800-5-1); Overvoltage Category III (EN 61800-5-1) |
| Operating Temperature | Nominal: 5-40 °C; Max.: 55 °C |
| Storage/Transport Temperature | Storage: -25-55 °C; Transport: -25-70 °C |
| Relative Humidity | Operation: 5-85%; Storage: 5-95%; Transport: Max. 95% (40 °C) |
| Installation Altitude | 0-500 m (no derating); 500-4000 m (80 W derating per 1000 m) |
| Protective Features | Open circuit, overload, short circuit, overtemperature, feedback protection; Undervoltage (<20 VDC)/overvoltage (>26 VDC) detection |
| Certifications | CE, KC, cULus (E225616, Power conversion equipment) |
| Key Features | Parallel connection (up to 5 modules, total power ≤80% of sum); External 24 VDC (UPS) input; Switchable 24 VDC output |
