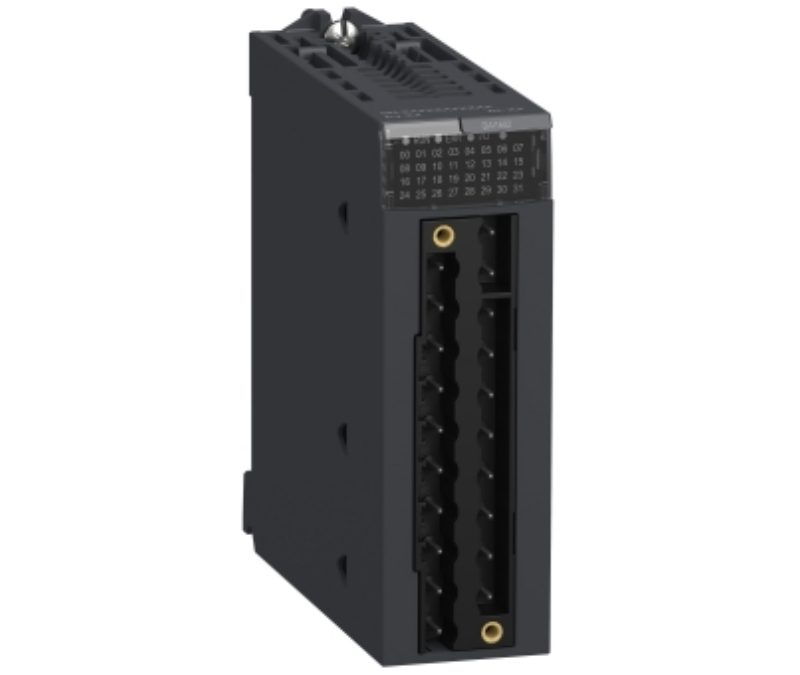

BMXDAI1602 Schneider Input Module
Model: BMXDAI1602 Schneider Input Module
Main Range of Product Modi…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Range of Product | Modicon X80 |
|---|---|
| Product or Component Type | Discrete input module |
| Discrete input number | 16 |
| Discrete input type | Isolated |
| input type | Resistive |
| Discrete input voltage | 24 V DC positive or negative 24 V AC |
| Discrete input current | 3 mA 24 V AC 3.9 mA 24 V DC |
| Input compatibility | With 2-wire/3-wire proximity sensors IEC 60947-5-2 With 2-wire/3-wire proximity sensors AC IEC 61131-2 Type 1 |
|---|---|
| Network Frequency | 50/60 Hz |
| network frequency limits | 47…63 Hz |
| Sensor power supply | 20…26 V AC 19…30 V DC |
| Current state 1 guaranteed | >= 2 mA AC >= 2 mA DC |
| Current state 0 guaranteed | <= 1 mA AC <= 0.5 mA DC |
| Input impedance | 6 kOhm |
| Insulation resistance | > 10 MOhm 500 V DC |
| Power dissipation in W | 3 W |
| AC activation response time | 15 ms |
| AC deactivation response time | 20 ms |
| Paralleling of inputs | No |
| Typical current consumption | 76 mA 3.3 V DC |
| MTBF reliability | 1125000 H |
| Protection type | 1 external fuse per group of channel 0.5 A fast blow |
| Voltage detection threshold | < 14 V AC/DC sensor fault > 18 V AC/DC sensor OK |
| Status LED | 1 LED (Green) module operating (RUN) 1 LED per channel (Green) channel diagnostic 1 LED (Red) module error (ERR) 1 LED (Red) module I/O |
| Net Weight | 0.254 lb(US) (0.115 kg) |
