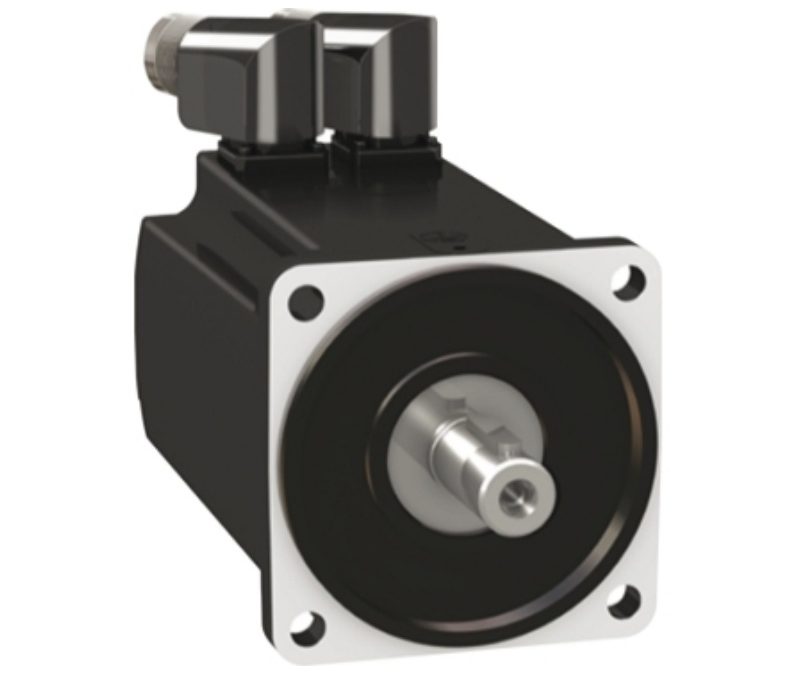

BMH1002P16F2A Schneider Servo motor
Model: BMH1002P16F2A Schneider Servo motor
Main Device short name BMH…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Device short name | BMH |
|---|---|
| Product or component type | Servo motor |
| Maximum mechanical speed | 6000 rpm |
| Range compatibility | Lexium 32 |
|---|---|
| [Us] rated supply voltage | 480 V |
| Network number of phases | Three phase |
| Continuous stall current | 5.04 A |
| Continuous power | 2.36 W |
| Maximum current Irms | 18 A for LXM32.D18N4 |
| Maximum permanent current | 18.23 A |
| Second shaft | Without second shaft end |
| Shaft diameter | 19 mm |
| Shaft length | 40 mm |
| Key width | 30 mm |
| Maximum axial force Fa | 0.2 x Fr |
|---|---|
| Brake pull-in power | 12 W |
| Type of cooling | Natural convection |
| Length | 202.3 mm |
| Centring collar diameter | 95 mm |
| Centring collar depth | 3.5 mm |
| Number of mounting holes | 4 |
| Mounting holes diameter | 9 mm |
| Circle diameter of the mounting holes | 115 mm |
| Net weight | 6.4 kg |
