Schneider

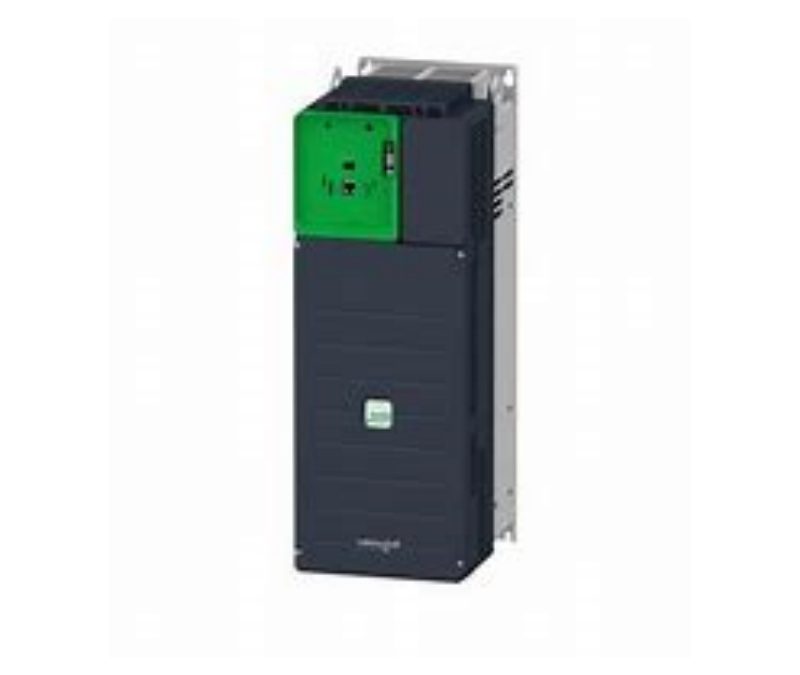

ATV930D37N4Z Schneider variable speed drive
Model: ATV930D37N4Z Schneider variable speed drive
Synchronous motor control …
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Synchronous motor control profile | Permanent magnet motor Synchronous reluctance motor |
|---|---|
| Maximum output frequency | 599 Hz |
| Switching frequency | 2…16 kHz adjustable 4…16 kHz with derating factor |
| Nominal switching frequency | 4 kHz |
| Line current | 66.2 A at 380 V (normal duty) 54.8 A at 380 V (heavy duty) 57.3 A at 480 V (normal duty) 48.3 A at 480 V (heavy duty) |
| Apparent power | 47.6 kVA at 480 V (normal duty) 40.2 kVA at 480 V (heavy duty) |
| Maximum transient current | 89.4 A during 60 s (normal duty) 92.3 A during 60 s (heavy duty) |
| Network frequency | 50…60 Hz |
| Prospective line Isc | 50 kA |
| Width | 210 mm |
|---|---|
| height | 597 mm |
| Depth | 262 mm |
| Net weight | 26 kg |
Country of origin IN
