Schneider

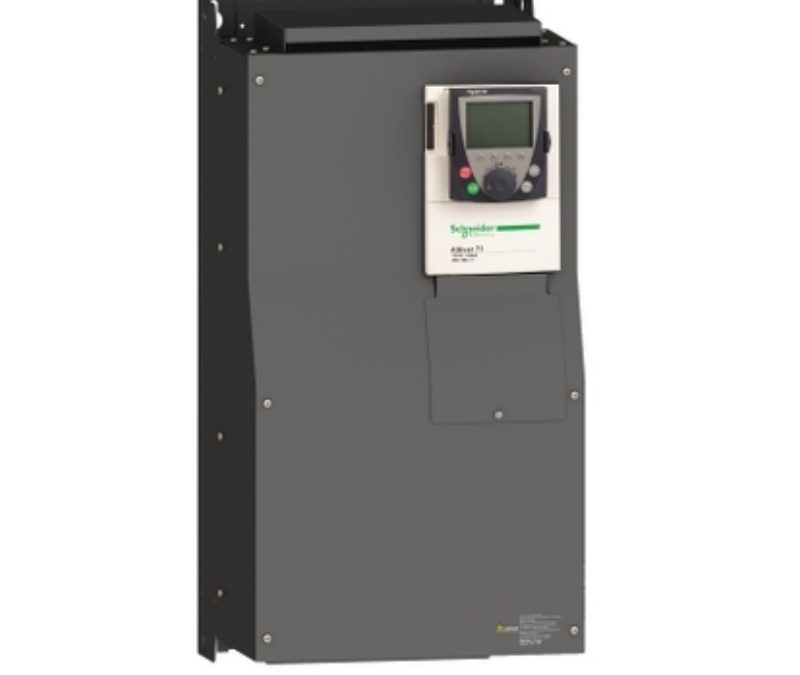

ATV71HD90N4 Schneider Variable speed drive
Model: ATV71HD90N4 Schneider Variable speed drive
Main Range of Product Alti…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Range of Product | Altivar 71 |
|---|---|
| Product or Component Type | Variable speed drive |
| Product Specific Application | Complex, high-power machines |
| Component name | ATV71 |
| Motor power kW | 90 kW, 3 phase 380…480 V |
| Maximum Horse Power Rating | 125 hp, 3 phase 380…480 V |
| Maximum motor cable length | 328.08 ft (100 m) shielded cable 656.2 ft (200 m) unshielded cable |
| power supply voltage | 380…480 V – 15…10 % |
| Phase | 3 phase |
| Line current | 134 A 480 V 3 phase 90 kW / 125 hp 166 A 380 V 3 phase 90 kW / 125 hp |
| Method of access | Slave CANopen |
|---|---|
| Marking | CE |
| Operating position | Vertical +/- 10 degree |
| Height | 36.2 in (920 mm) |
| Depth | 14.8 in (377 mm) |
| Width | 12.6 in (320 mm) |
| Net Weight | 220.5 lb(US) (100 kg) |
