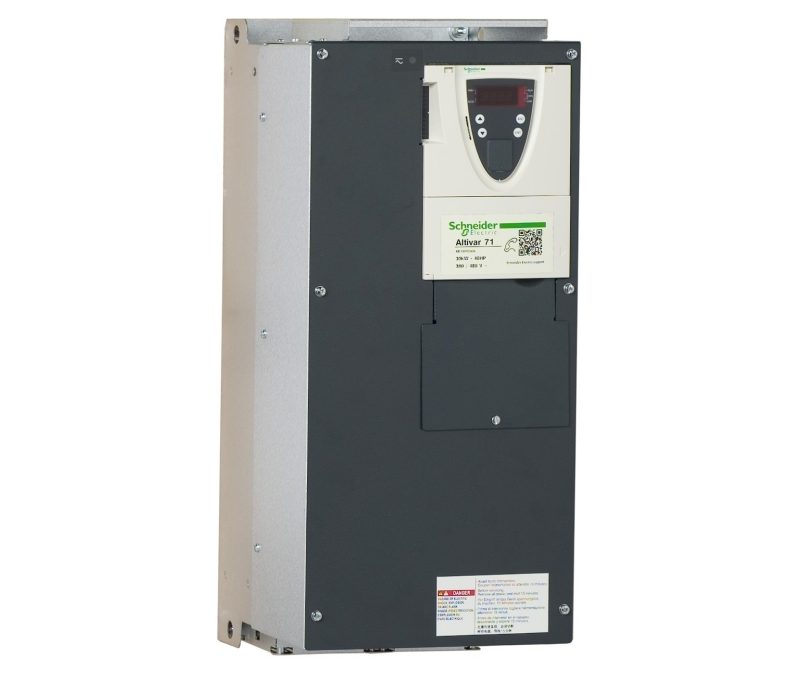

ATV71HD75N4Z Schneider Electric Altivar 71 Variable Speed Drive
Model: ATV71HD75N4Z Schneider Electric Altivar 71 Variable Speed Drive
Manufacturers Schneider Mo…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
Schneider
Model(s)
Schneider driver
- Product range: Artiva 71
- Product or component type: Variable speed drive
- Product specific application: complex high-power machines
- Component name: ATV 71
- Motor power kW: 30 kW, three-phase 380…480 V
- Maximum rated horsepower: 40 hp, three-phase 380…480 volts
- Maximum motor cable length: 100 m (328.08 ft) shielded cable, 200 m (656.17 ft) unshielded cable
- Mains voltage: 380…480 V – 15…10 %
- Stage: 3 phases
- Line current: 56 A 480 V 3 phase 30 kW / 40 hp, 66 A 380 V 3 phase 30 kW / 40 hp
- EMC filter: Fusion
- Assembly method: with heat sink
- Apparent power: 43.4 kVA 380 V 3 phase 30 kW / 40 hp
- Expected line Isc: 22kA three phase
- Nominal output current: 52 A 4 kHz 460 V 3-phase 30 kW / 40 hp, 66 A 4 kHz 380 V 3-phase 30 kW / 40 hp
- Maximum transient current: 109 A 2 sec 3 phase 30 kW / 40 hp, 99 A 60 sec 3 phase 30 kW / 40 hp
- Output frequency: 0.1…599 Hz
- Nominal switching frequency: 4kHz
- Dimensions(LxWxH):29 cm x 32 cm x63 cm
- Weight:44kg
- Country of Origin: China
