ATV71HD37N4Z Schneider Motor Drives

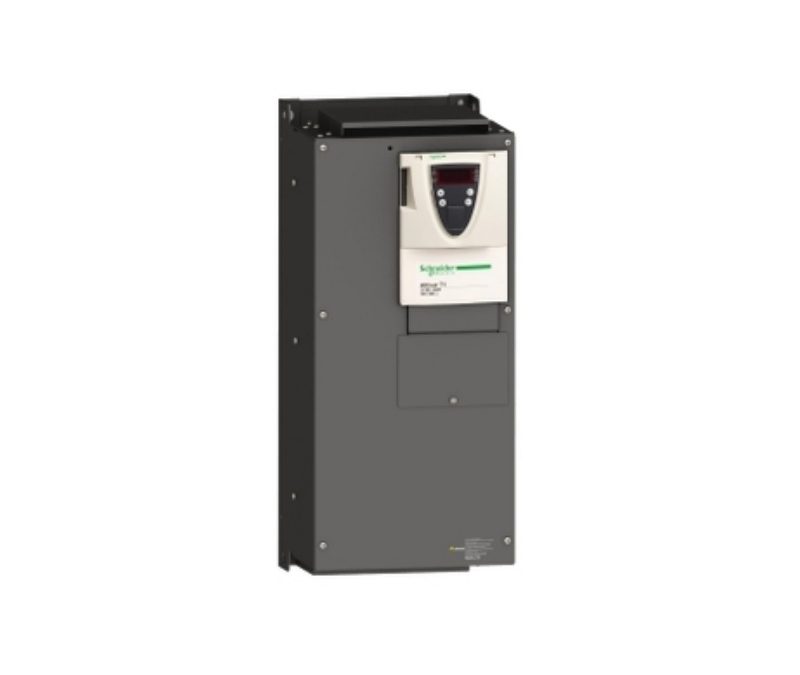

Model: ATV71HD37N4Z Schneider Motor Drives
Range of Product Altivar 7…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Range of Product | Altivar 71 |
|---|---|
| Product or Component Type | Variable speed drive |
| Product Specific Application | Complex, high-power machines |
| Component name | ATV71 |
| Motor power kW | 37 kW, 3 phase 380…480 V |
| Maximum Horse Power Rating | 50 hp, 3 phase 380…480 V |
| Maximum motor cable length | 328.08 ft (100 m) shielded cable 656.17 ft (200 m) unshielded cable |
| power supply voltage | 380…480 V – 15…10 % |
| Phase | 3 phase |
| Line current | 69 A 480 V 3 phase 37 kW / 50 hp 84 A 380 V 3 phase 37 kW / 50 hp |
| EMC filter | Integrated |
| Assembly style | With heat sink |
| variant | Without remote graphic terminal |
| Apparent power | 55.3 kVA 380 V 3 phase 37 kW / 50 hp |
| Prospective line Isc | 22 kA 3 phase |
| Nominal output current | 65 A 2.5 kHz 460 V 3 phase 37 kW / 50 hp 79 A 2.5 kHz 380 V 3 phase 37 kW / 50 hp |
| Maximum transient current | 130 A 2 s 3 phase 37 kW / 50 hp 118.5 A 60 s 3 phase 37 kW / 50 hp |
| Output frequency | 0.1…599 Hz |
| Nominal switching frequency | 2.5 kHz |
| Switching frequency | 1…16 kHz adjustable 2.5…16 kHz with derating factor |
| Asynchronous motor control profile | Sensorless flux vector control (SFVC) (voltage or current vector) Voltage/frequency ratio (2 or 5 points) ENA (Energy adaptation) system for unbalanced loads Flux vector control (FVC) with sensor (current vector) |
| Marking | CE |
|---|---|
| Operating position | Vertical +/- 10 degree |
| Height | 21.65 in (550 mm) |
| Depth | 10.47 in (266 mm) |
| Width | 9.45 in (240 mm) |
| Net Weight | 81.57 lb(US) (37 kg) |
| Country of origin | IN |
|---|
