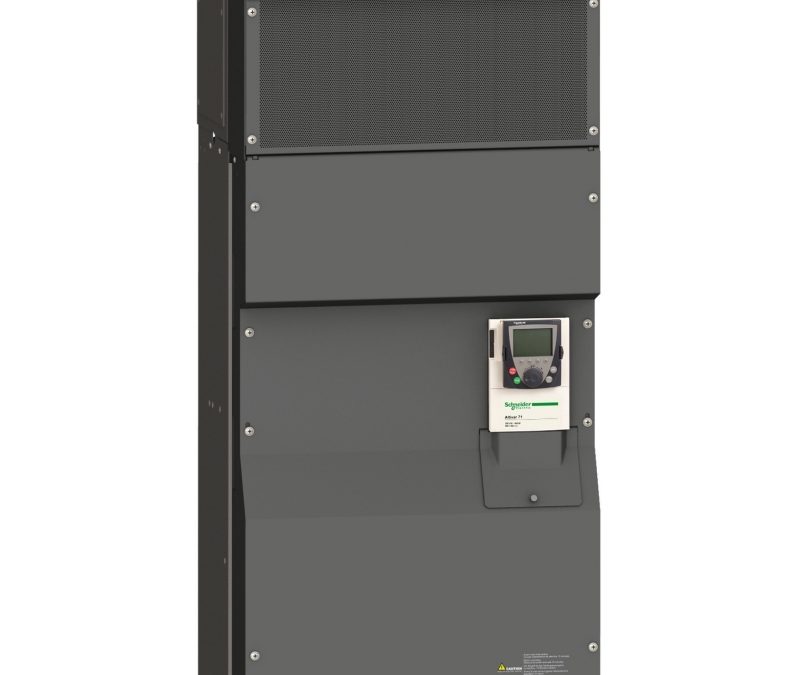

ATV71HC50N4 Schneider variable speed drive ATV71
Model: ATV71HC50N4 Schneider variable speed drive ATV71
Manufacturers Schneider Mo…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
Schneider
Model(s)
Schneider driver
- Product Range:Altivar 71
- Product or component type: Variable speed drive
- Product specific application: complex high-power machines
- Component name: ATV 71
- Motor power kW: 500 kW, three-phase 380…480 V
- Maximum rated horsepower: 700 horsepower, three-phase 380…480 V
- Maximum motor cable length:
- 100 m (328.08 ft) shielded cable
- 200 m (656.17 ft) unshielded cable
- Mains voltage: 380…480 volts – 15…10 %
- Stage: 3 phases
- Line current:
- 699 A 480 V three-phase 500 kW / 700 hp
- 876 A 380 V three-phase 500 kW / 700 hp
- EMC filter: fused
- Assembly method: with heat sink
- Variant: Enhanced version
- Apparent power: 576.6 kVA 380 V three-phase 500 kW / 700 hp
- Expected line Isc: 50kA three-phase
- Nominal output current:
- 941 A 2.5 kHz 380 V 3-phase 500 kW / 700 hp
- 941 A 2.5 kHz 460 V 3-phase 500 kW / 700 hp
- Maximum transient current:
- 1411 A 60 sec 3 phase 500 kW / 700 hp
- 1552 A 2 sec 3 phase 500 kW / 700 hp
- Output frequency: 0.1…500 Hz
- Nominal switching frequency: 2.5kHz
- Switching frequency: 2.5…8 kHz adjustable, 2.5…8 kHz with derating factor”
- Dimensions (LxWxH) : 37.7 cm x 112 cm x 139 cm
- Weight : 435 kg
- Country of Origin: China
