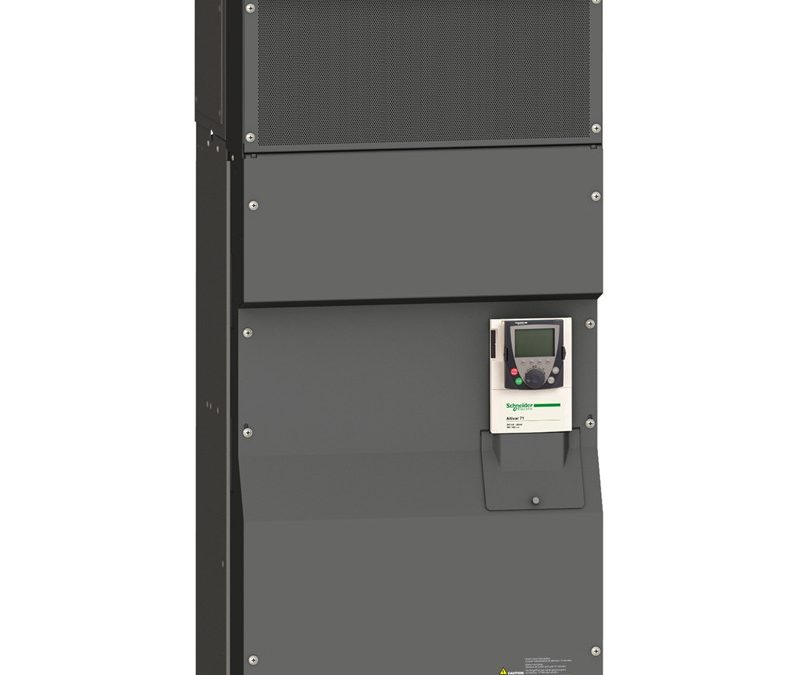

ATV71HC13N4 variable speed drive ATV71 – 132kW

Design
Range of product

Altivar 71
Product or component type

variable speed drive
Product destination

asynchronous motors|synchronous motors
Sustainable offer status

Green Premium product
Warranty

18 months
Physical
Local signalling

1 LED (red) for drive voltage
Type of cable

with a NEMA Type1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC|with an IP21 or an IP31 kit: 3 wire(s)IEC cable at 40 °C, copper 70 °C / PVC|without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC|without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR
Supply

internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection|internal supply: 24 V DC (21-27 V), <200 mA, protection type: overload and short-circuit protection
Protection type

against exceeding limit speed: drive|short-circuit between motor phases: drive|thermal protection: drive|motor phase break: motor|power removal: motor|thermal protection: motor|against input phase loss: drive|break on the control circuit: drive|input phase breaks: drive|line supply overvoltage: drive|line supply undervoltage: drive|overcurrent between output phases and earth: drive|overheating protection: drive|overvoltages on the DC bus: drive
Insulation resistance

> 1 mOhm 500 V DC for 1 minute to earth
Communication port protocol

CANopen|Modbus
Connector type

1 RJ45 (on front face) for Modbus|1 RJ45 (on terminal) for Modbus|male SUB-D 9 on RJ45 for CANopen
Marking

CE
Height

1190 mm
Depth

377 mm
Width

340 mm
Net weight

116 kg
Standards

EN 61800-3 environments 1 category C3|EN/IEC 61800-5-1|EN/IEC 61800-3|UL Type 1|IEC 60721-3-3 class 3C2|EN 55011 class A group 2|EN 61800-3 environments 2 category C3
Product certifications

NOM 117|GOST|CSA|C-Tick|UL
Ip degree of protection

IP20
Relative humidity

5…95 % without condensation conforming to IEC 60068…2-3|5…95 % without dripping water conforming to IEC 60068…2-3
Ambient air temperature for operation

-10…50 °C (without derating)
Ambient air temperature for storage

-25…70 °C
Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free

Yes
Rohs exemption information

Yes
China rohs regulation

X
Environmental disclosure

ENVPEP091205EN
California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
