Schneider

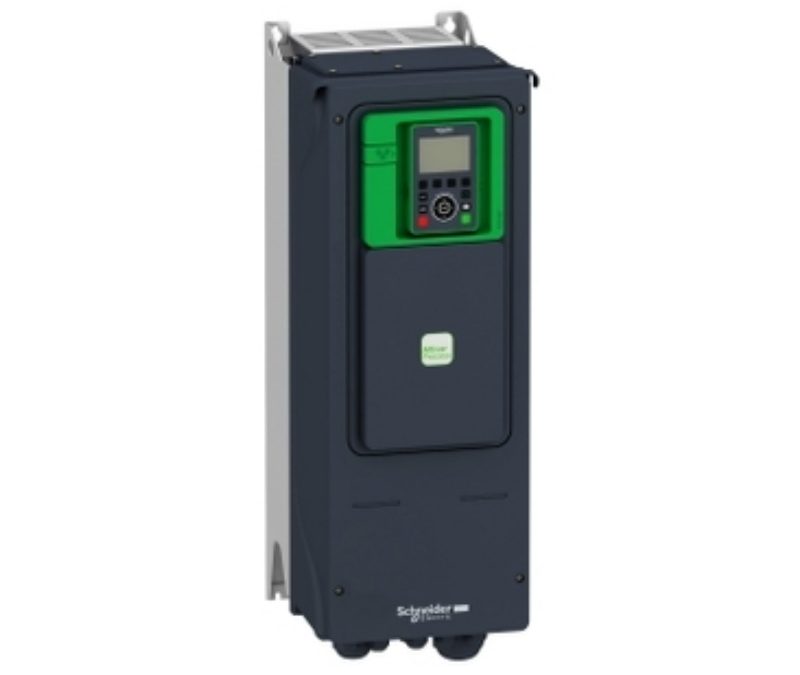

ATV650D11N4 Schneider variable speed drive
Model: ATV650D11N4 Schneider variable speed drive
Main Range of product Alti…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Range of product | Altivar Process ATV600 |
|---|---|
| Product or component type | Variable speed drive |
| Product specific application | Process and utilities |
| Device short name | ATV650 |
| variant | Standard version |
| Product destination | Asynchronous motors Synchronous motors |
| EMC filter | Integrated with 50 m conforming to IEC 61800-3 category C2 Integrated with 150 m conforming to IEC 61800-3 category C3 |
| IP degree of protection | IP54 conforming to IEC 60529 IP55 conforming to IEC 61800-5-1 |
| [Us] rated supply voltage | 380…480 V |
| Type of cooling | Forced convection |
| Supply frequency | 50…60 Hz – 5…5 % |
| [Us] rated supply voltage | 380…480 V – 15…10 % |
| Motor power kW | 7.5 kW (heavy duty) 11.0 kW (normal duty) |
| Motor power hp | 10 hp heavy duty 15 hp normal duty |
| Line current | 19.8 A at 380 V (normal duty) 17 A at 480 V (normal duty) 14.1 A at 380 V (heavy duty) 12.5 A at 480 V (heavy duty) |
| Prospective line Isc | 50 kA |
| Width | 264 mm |
|---|---|
| Height | 678 mm |
| Depth | 299 mm |
| Net weight | 13.7 kg |
| Analogue input number | 3 |
