ATV61HD75N4Z Schneider Motor Drives

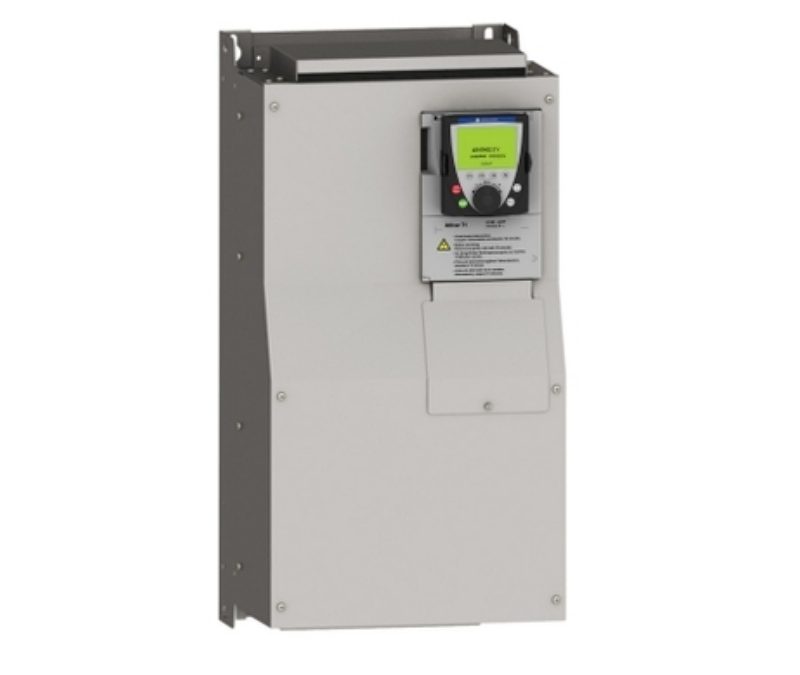

Model: ATV61HD75N4Z Schneider Motor Drives
Range of product Altivar 6…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Range of product | Altivar 61 |
|---|---|
| Product or component type | Variable speed drive |
| Product specific application | Pumping and ventilation machine |
| Component name | ATV61 |
| Motor power kW | 75 kW, 3 phases at 380…480 V |
| Motor power hp | 100 hp, 3 phases at 380…480 V |
| power supply voltage | 380…480 V – 15…10 % |
| supply number of phases | 3 phases |
| Line current | 137 A for 480 V 3 phases 75 kW / 100 hp 167 A for 380 V 3 phases 75 kW / 100 hp |
| EMC filter | Level 3 EMC filter |
| variant | Without remote graphic terminal |
| Assembly style | With heat sink |
| Apparent power | 109.9 kVA at 380 V 3 phases 75 kW / 100 hp |
| maximum prospective line Isc | 22 kA for 3 phases |
| Maximum transient current | 192 A for 60 s, 3 phases |
| Nominal switching frequency | 12 kHz |
| Marking | CE |
|---|---|
| Operating position | Vertical +/- 10 degree |
| Net weight | 44 kg |
| Width | 320 mm |
| height | 630 mm |
| Depth | 290 mm |
