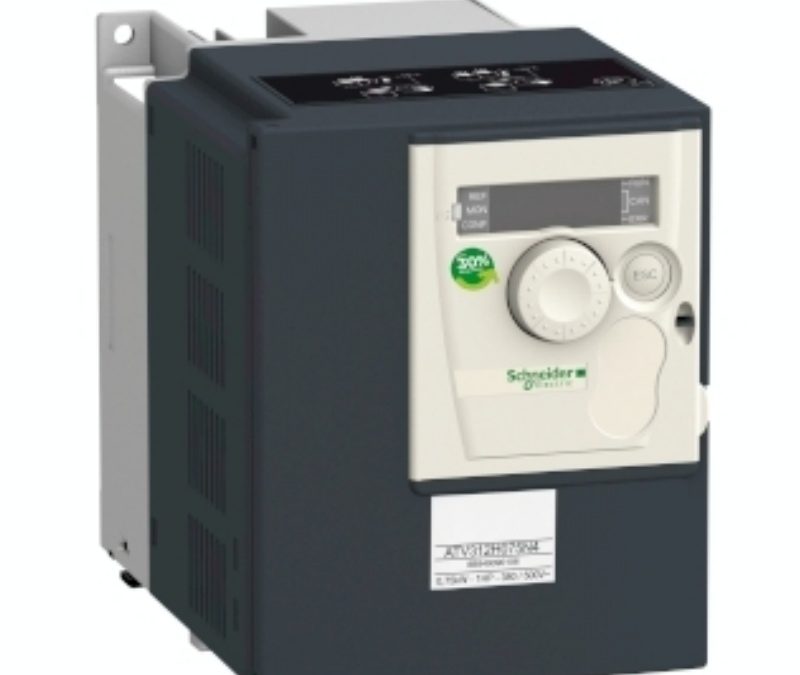

ATV312H055N4 Schneider Variable speed drive
Model: ATV312H055N4 Schneider Variable speed drive
Main Range of Product Alti…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Range of Product | Altivar 312 |
|---|---|
| Product or Component Type | Variable speed drive |
| Product destination | Asynchronous motors |
| Product Specific Application | Simple machine |
| Assembly style | With heat sink |
| Component name | ATV312 |
| Motor power kW | 0.55 kW |
| Maximum Horse Power Rating | 0.75 hp |
| [Us] rated supply voltage | 380…500 V – 15…10 % |
| Supply frequency | 50…60 Hz – 5…5 % |
| Phase | 3 phase |
| Line current | 2.8 A 380 V, Isc = 5 kA 2.2 A 500 V |
| EMC filter | Integrated |
| Apparent power | 1.8 kVA |
| Maximum transient current | 2.9 A 60 s |
| Height | 5.6 in (143 mm) |
|---|---|
| Width | 4.2 in (107 mm) |
| Depth | 6.0 in (152 mm) |
| Net Weight | 4.0 lb(US) (1.8 kg) |
| Supply voltage limits | 323…550 V |
|---|---|
| Prospective line Isc | 5 kA |
| Continuous output current | 1.9 A 4 kHz |
| Output frequency | 0…500 Hz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 2…16 kHz adjustable |
| Transient overtorque | 170…200 % of nominal motor torque |
| Braking torque | 150 % 60 s with braking resistor 100 % with braking resistor continuously 150 % without braking resistor |
| Regulation loop | Frequency PI regulator |
