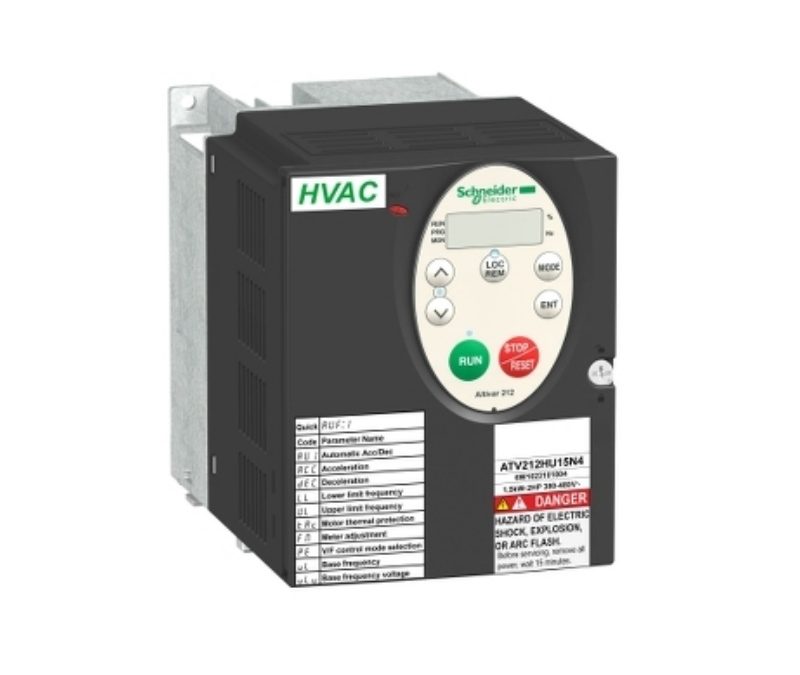

ATV212HU75N4 Schneider VARIABLE SPEED DRIVE
Model: ATV212HU75N4 Schneider VARIABLE SPEED DRIVE
Main Device short name ATV…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Device short name | ATV212 |
|---|---|
| Product destination | Asynchronous motors |
| Phase | 3 phase |
| Motor power kW | 7.5 kW |
| Maximum Horse Power Rating | 10 hp |
| Supply voltage limits | 323…528 V |
| Supply frequency | 50…60 Hz – 5…5 % |
| Line current | 11.7 A 480 V 14.7 A 380 V |
| Range of Product | Altivar 212 |
| Product or Component Type | Variable speed drive |
| Product Specific Application | Pumps and fans in HVAC |
| communication port protocol | APOGEE FLN LonWorks BACnet METASYS N2 Modbus |
| [Us] rated supply voltage | 380…480 V – 15…10 % |
| EMC filter | Class C2 EMC filter integrated |
| IP degree of protection | IP21 |
| Apparent power | 12.2 kVA 380 V |
|---|---|
| Continuous output current | 16 A 380 V 16 A 460 V |
| Maximum transient current | 17.6 A 60 s |
| Speed drive output frequency | 0.5…200 Hz |
| Speed range | 1…10 |
| Speed accuracy | +/- 10 % of nominal slip 0.2 Tn to Tn |
| Local signalling | For DC bus energized 1 LED (red) |
| Output voltage | <= power supply voltage |
| Isolation | Electrical between power and control |
| Width | 7.09 in (180 mm) |
|---|---|
| Height | 9.13 in (232 mm) |
| Depth | 6.69 in (170 mm) |
| Net Weight | 14.22 lb(US) (6.45 kg) |
| Country of origin | ID |
|---|
