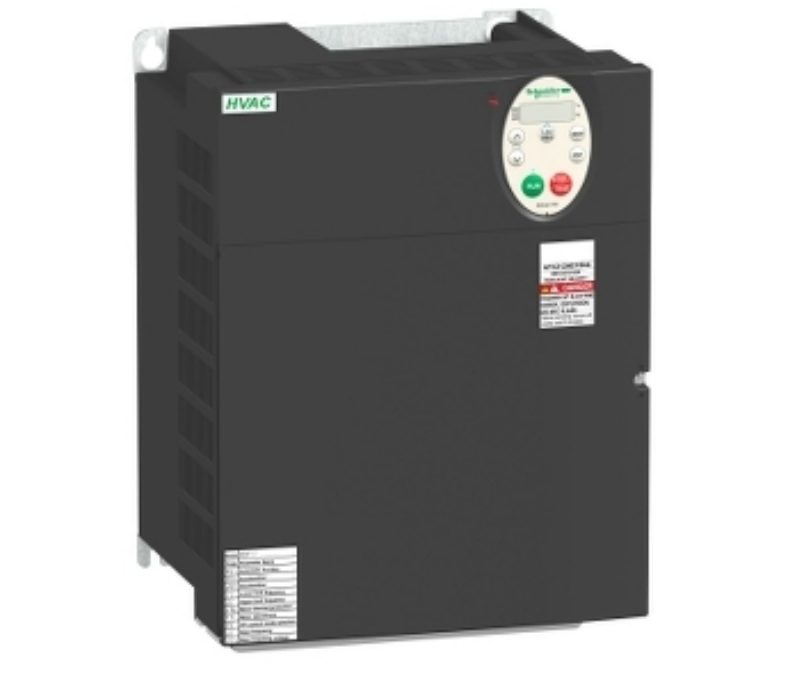

ATV212HD18N4 Schneider variable speed drive
Model: ATV212HD18N4 Schneider variable speed drive
Main Device short name ATV…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Device short name | ATV212 |
|---|---|
| Product destination | Asynchronous motors |
| Phase | 3 phase |
| Motor power kW | 18.5 kW |
| Maximum Horse Power Rating | 25 hp |
| Supply voltage limits | 323…528 V |
| Supply frequency | 50…60 Hz – 5…5 % |
| Line current | 27.8 A 480 V 34.8 A 380 V |
| Range of Product | Altivar 212 |
| Product or Component Type | Variable speed drive |
| Product Specific Application | Pumps and fans in HVAC |
| Communication Port Protocol | APOGEE FLN BACnet LonWorks Modbus METASYS N2 |
| [Us] rated supply voltage | 380…480 V – 15…10 % |
| Width | 9.6 in (245 mm) |
|---|---|
| Height | 13.0 in (330 mm) |
| Depth | 7.5 in (190 mm) |
| Net Weight | 25.68 lb(US) (11.65 kg) |
| Apparent power | 28.2 kVA 380 V |
|---|---|
| Continuous output current | 37 A 380 V 37 A 460 V |
| Maximum transient current | 40.7 A 60 s |
| Speed drive output frequency | 0.5…200 Hz |
| Speed range | 1…10 |
| Speed accuracy | +/- 10 % of nominal slip 0.2 Tn to Tn |
