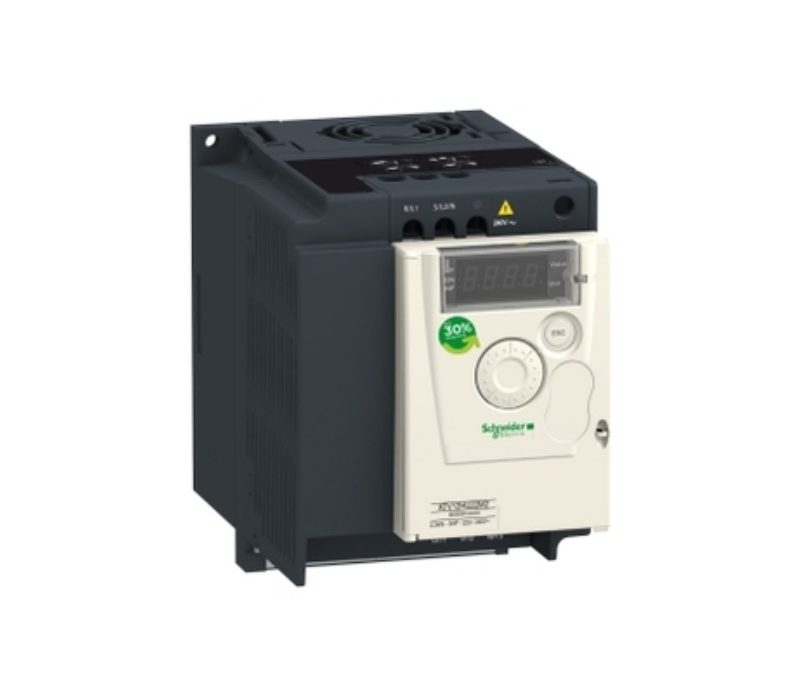

ATV12HU15M3 Schneider variable speed drives
Model: ATV12HU15M3 Schneider variable speed drives
Range of Product Altivar 1…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Range of Product | Altivar 12 |
|---|---|
| Product or Component Type | Variable speed drive |
| Product Specific Application | Simple machine |
| Mounting Mode | Cabinet mount |
| communication port protocol | Modbus |
| Supply frequency | 50/60 Hz +/- 5 % |
| [Us] rated supply voltage | 200…240 V – 15…10 % |
| Nominal output current | 7.5 A |
| Maximum Horse Power Rating | 2 hp |
| Motor power kW | 1.5 kW |
| Maximum Horse Power Rating | 2 hp |
| EMC filter | Without EMC filter |
| IP degree of protection | IP20 |
| Protection type | Line supply overvoltage Line supply undervoltage Overcurrent between output phases and earth Overheating protection Short-circuit between motor phases Against input phase loss in three-phase Thermal motor protection via the drive by continuous calculation of I²t |
|---|---|
| Tightening torque | 10.62 lbf.in (1.2 N.m) |
| insulation | Electrical between power and control |
| Quantity per Set | Set of 1 |
| Width | 4.13 in (105 mm) |
| Height | 5.63 in (143 mm) |
| Depth | 5.17 in (131.2 mm) |
| Net Weight | 2.65 lb(US) (1.2 kg) |
| Country of origin | ID |
|---|
