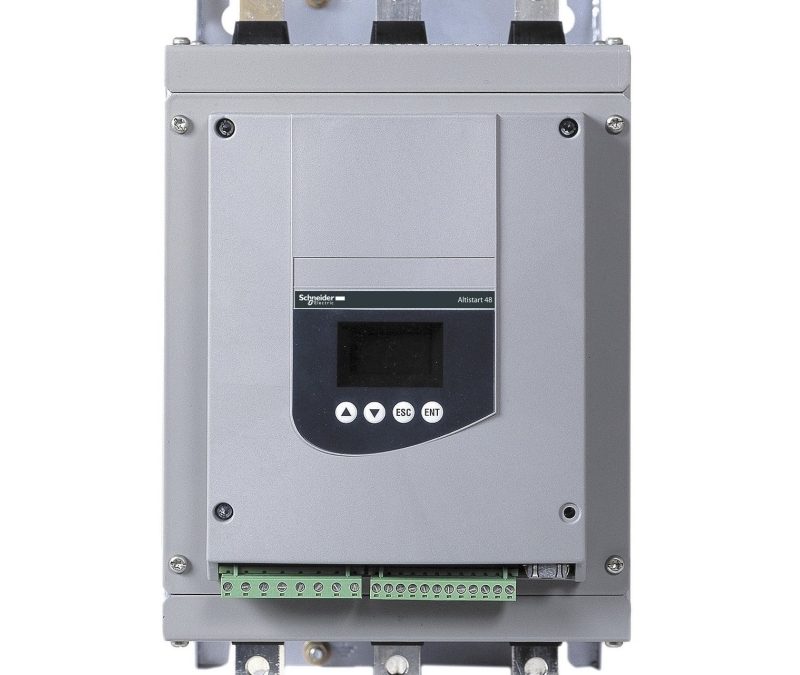

ATS48C14Q Schneider Electric Soft starter for asynchronous motor
Model: ATS48C14Q Schneider Electric Soft starter for asynchronous motor
Manufacturers schneider M…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
schneider
Model(s)
schneider SOFT START
- Product Type : Soft starter for asynchronous motor
- Range of product : Altistart 48
- Product or component type : Soft starter
- Product destination :Asynchronous motors
- Product specific application : Heavy duty industry and pumps
- Power supply voltage : 230…415 V – 15…10 %
- IP degree of protection : IP00
- Assembly style : With heat sink
- Function available : External bypass (optional)
- Power supply voltage limits : 195…456 V
- Power supply frequency : 50…60 Hz – 5…5 %
- Power supply frequency limits : 47.5…63 Hz
- Device connection : To the motor delta terminals, In the motor supply line
- Factory setting current : 131 A
- [Uc] Control circuit voltage : 220 – 15 % to 415 + 10 %, 50/60 Hz
- Control circuit consumption : 30 W
- Discrete output number : 2
- Output absolute accuracy precision :+/- 5 %
- Minimum switching current : 10 mA at 6 V DC for relay outputs
- Dimensions (LxWxH) : 26.5cm x 20cm x 34cm
- Weight : 12.4 kg
- country of origin：China
