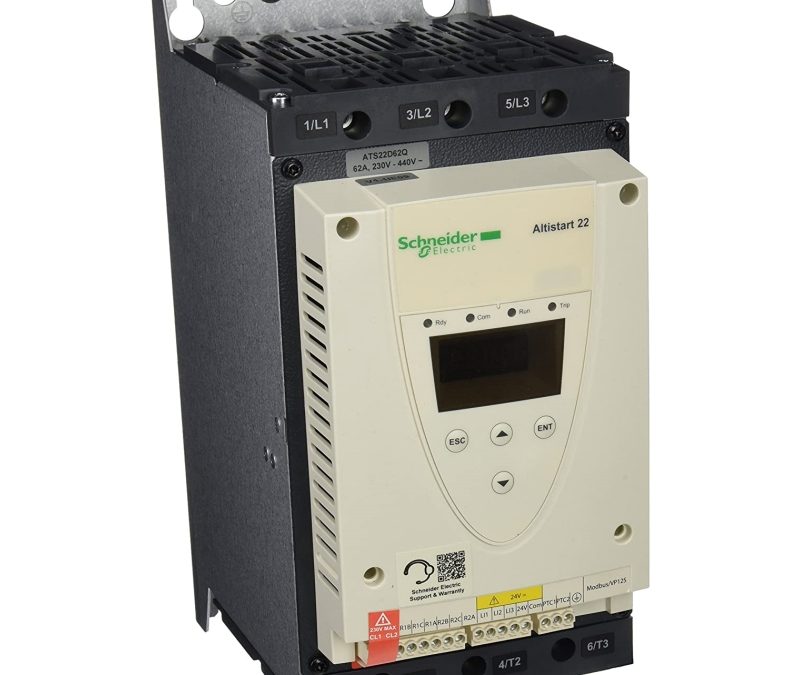

ATS22D75Q Schneider Electric Soft starter-ATS22
Model: ATS22D75Q Schneider Electric Soft starter-ATS22
Manufacturers schneider M…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
schneider
Model(s)
schneider SOFT START
- Product range: Altistart 22
- Product or Component Type : Soft Starter
- Product destination: asynchronous motor
- Product specific applications: pumps and fans
- Number of network phases: 3 phases
- [Us] Rated supply voltage: 230…440 V – 15…10 %
- Motor power kW: 37kW 400V, 37kW 440V, 18.5kW 230V
- Factory setting current: 69A
- Power consumption (W): 63 W for standard applications
- Usage category: AC-53A
- Start type: Start via torque control (current limited to 3.5 In)
- IcL starter rating: 75 A for connection to motor power cord for standard applications
- IP protection level: IP20
- Assembly method: with heat sink
- Available features: Internal bypass
- Supply voltage limit: 195…484 V
- Mains frequency: 50…60 Hz – 10…10 %
- Network frequency: 45…66 Hz
- Device connection: In the motor supply line, to the motor delta terminal
- [Uc] Control circuit voltage: 230 V – 15…10 % 50/60 Hz
- Control circuit power consumption: 20W
- Number of discrete outputs: 2
- Discrete Output Type: Relay Output R1 230 V Run, Alarm, Trip, Stop, Not Stopped, Start, Ready C/O
- Dimensions (LxWxH) : 20.7 cm x 14.5 cm x 29.5 cm
- Weight : 12 kg
- country of origin： Indonesia
