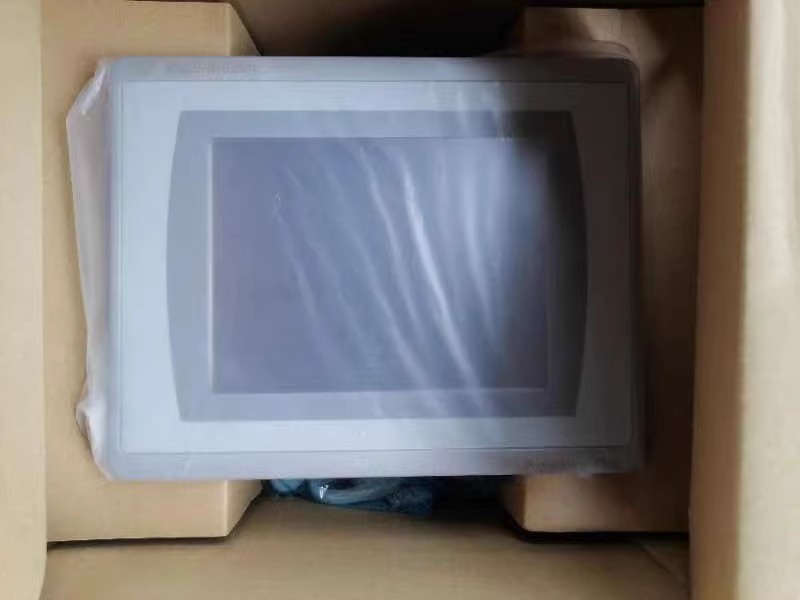

Allen-Bradley 2711P-T10C22D9P PanelView™ Plus 7 Operator Panel
Model: Allen-Bradley 2711P-T10C22D9P PanelView™ Plus 7 Operator Panel
Data Category Specific Par…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Data Category | Specific Parameters |
|---|---|
| Product Model | 2711P-T10C22D9P |
| Brand | Allen-Bradley |
| Product Series | PanelView™ Plus 7 Performance |
| Product Type | Integrated Operator Panel |
| Power Supply | 18-30 V DC |
| Max Power Consumption | 50 W (DC) |
| Operator Input Method | Touch (resistive touch screen) |
| Display Specifications | 10.4-inch TFT, 800×600 pixels, 262 k colors, 300 cd/m² brightness, LED backlight |
| Backlight Life | 50,000 hours |
| Memory Configuration | 1 GB RAM, 512 MB Non-Volatile Memory |
| Expansion Slots | 1 x SD/MMC memory card slot |
| Peripheral Interfaces | 2 x USB Host ports, 1 x USB Device port |
| Ethernet Interfaces | 2 x 10/100 Mbps RJ-45 ports (supports DLR/linear/star topologies) |
| Supported Protocols | EtherNet/IP, EtherNet/OCPP |
| Operating System | Windows CE 6.0 (with extended features/file viewers) |
| Configuration Software | FactoryTalk View Studio Machine Edition |
| Dimensions (W×H×D) | 297 mm × 252 mm × 69.6 mm |
| Cutout Dimensions (W×H) | 269 mm × 224 mm |
| Net Weight | 2.28 kg |
| Front IP Rating | IP66 |
| Operating Temperature Range | 0 °C (min) – 55 °C (max) |
| Storage Temperature Range | -25 °C (min) – 70 °C (max) |
| Key Certifications | CE, CSA, RCM, RoHS, C-UL-US, UL, ODVA – EtherNet/IP, KC (KCC) |
| Real Time Clock | Integrated (lithium battery, 4-year service life) |
