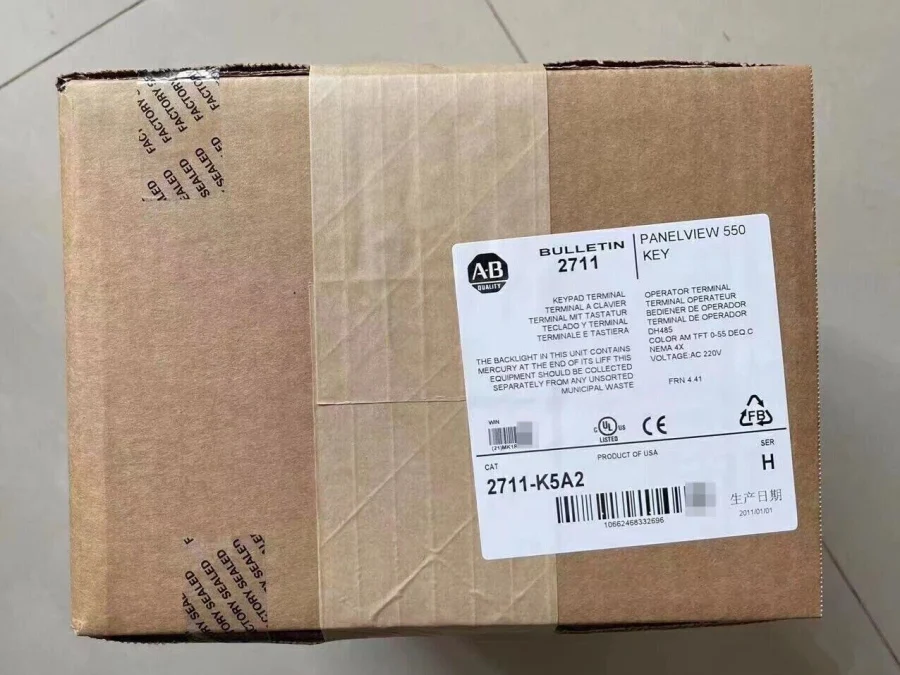

Allen-Bradley 2711-K5A2 PanelView 550 Operator Panel
Model: Allen-Bradley 2711-K5A2 PanelView 550 Operator Panel
Data Category Specific Par…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Data Category | Specific Parameters |
|---|---|
| Product Model | 2711-K5A2 |
| Brand | Allen-Bradley |
| Product Series | PanelView Standard 550 |
| Product Type | Operator Panel (Monochrome Keypad Terminal) |
| Status | Discontinued (as of June 30, 2012) |
| Display Specification | 5.5 inches, monochrome, 256×128 pixels, LED backlight |
| Backlight Life | 100,000 hours |
| Power Supply | 85-264 V AC; Max. power consumption: 45 W (DC)/45 VA (AC) |
| Memory | 170 kB RAM (installed); 240 KB non-volatile memory |
| Integrated Features | Real-time clock |
| Communication Ports | On-board RJ-45 port |
| Supported Protocol | DH485 |
| Dimensions (W×H×D) | 266 mm × 167 mm × 106 mm |
| Net Weight | 1.2 kg |
| Protection Rating (Front) | IP65 |
| Operating Temperature Range | 0 °C (min) – 55 °C (max) |
| Storage Temperature Range | -20 °C (min) – 70 °C (max) |
| Relative Humidity | 5% RH (min) – 95% RH (max), non-condensing |
| Mechanical Resistance | Shock: 30 g (max acceleration); Vibration: 2 g (max acceleration), 2000 Hz (max operational frequency) |
| Mounting Dimensions | Top view: 266 mm (width) × 167 mm (height); Cutout dimensions inferred from series specs |
| Country of Origin | Not specified in provided data |
| Key Notes | Migration assistance available via NHP; Uses common development software for programming |
