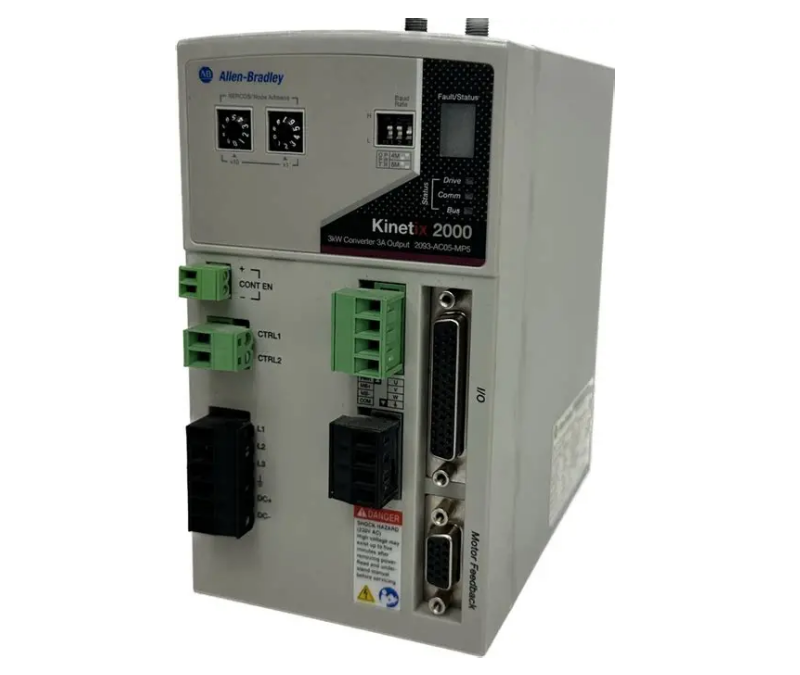

Allen-Bradley 2093-AC05-MP5 Kinetix 2000 Servo Drive Specification Sheet
Model: Allen-Bradley 2093-AC05-MP5 Kinetix 2000 Servo Drive Specification Sheet
Data Category Specific Par…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Data Category | Specific Parameters |
|---|---|
| Product Model | 2093-AC05-MP5 |
| Brand | Allen-Bradley |
| Product Series | Kinetix 2000 |
| Product Type | Integrated Axis Module (Servo Drive) |
| Integration Type | PLC Integrated (seamless with Logix platform) |
| Communications Protocol | Sercos III |
| Input Voltage (1-phase/3-phase) | Nom: 230 V AC (rms); Min: 170 V AC (rms); Max: 264 V AC (rms) |
| Input Frequency | Nom: 50/60 Hz; Min: 47 Hz; Max: 63 Hz |
| Input Current | 1-phase (nom): 10.95 A; 3-phase (nom): 11.66 A; Max (0-pk): 34 A (both phases) |
| Bus Power | Continuous: 3 kW; Peak: 6 kW |
| Internal Shunt Specifications | Continuous power: 15 W; Peak power: 3000 W; Resistance: 50 Ohms |
| PWM Output Frequency | 8 kHz |
| Line Loss Ride-Through Time | 20 ms |
| Peak Electrical Efficiency | ≥95% |
| Dimensions (W×H×D) | 80 mm × 225 mm × 192 mm |
| Net Weight | 1.32 kg |
| Operating Temperature Range | 0 °C (min) – 50 °C (max) |
| Storage Temperature Range | -40 °C (min) – 85 °C (max) |
| Relative Humidity | 5% RH (min) – 95% RH (max) |
| Operating Altitude | 0–1000 m (no derating); 1000–3000 m (with derating) |
| Mechanical Resistance | Shock: 15 g (max, 11 ms duration); Vibration: 2 m/s² (max acceleration), 0.35 mm (max peak-to-peak displacement), 500 Hz (max operational frequency) |
| Compatible Motors | MPAR/TLAR/MPAI/MPMA/LDAT Electric Cylinders, MPL/MPM/MPS Motors, TLY-Series Motors |
| Certifications & Compliance | Certifications: CE, C-Tick, C-UL, KC (KCC), UL; Standards: UL 508C, EN 61800-3, EN 50178, AS/NZS CISPR 11-Group2-ClassA |
