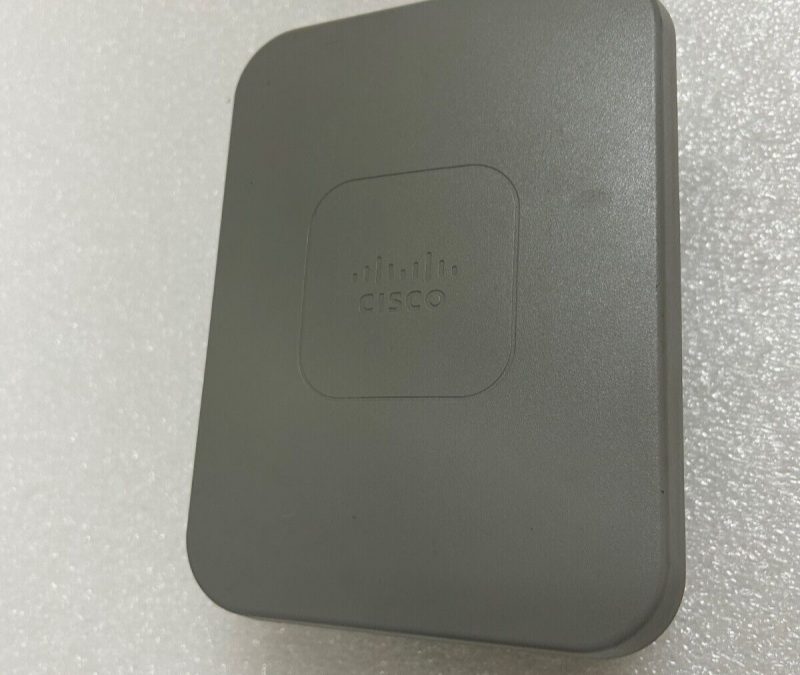

AIR-AP1542I-R-K9 Cisco Aironet 1542I 1100 Mbit/s Power over Ethernet
Model: AIR-AP1542I-R-K9 Cisco Aironet 1542I 1100 Mbit/s Power over Ethernet
Part Number AIR-AP1542I-R-…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Part Number
AIR-AP1542I-R-K9
Description
802.11ac Wave 2 Value Outdoor AP, Internal Antenna, R Regulatory Domain
802.11ac Wave 1 and 2
capabilities
- 2 x 2 MIMO with two spatial streams
- Multiuser and single-user MIMO
- Maximal Ratio Combining (MRC)
- 802.11ac beamforming (transmit beamforming)
- 20-, 40-, and 80-MHz channels
- PHY data rates up to 867 Mbps (80 MHz in 5 GHz)
- Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
- 802.11 Dynamic Frequency Selection (DFS)
- Cyclic-Shift-Diversity (CSD) support
Regulatory Domain
R (R regulatory domain):
- 2.412 to 2.472 GHz, 13 channels
- 5.260 to 5.320 GHz, 4 channels
- 5.660 to 5.700 GHz, 3 channels
- 5.745 to 5.825 GHz, 5 channels
Antenna
Integrated dual-band, vertical polarization, omnidirectional antenna radome, 5 dBi (2.4 Ghz) and 5dBi (5.8 GHz)
Note: This model can be mounted horizontally on a wall or pole, to provide omni-directional coverage; or can be mounted
vertically to provide semi-omni coverage.
Interfaces
- WAN port 10/100/1000BASE-T Ethernet, autosensing (RJ-45), PoE in
- Management console port (RJ-45)
- Multicolor LED/Reset button
Dimensions (W x L x H)
7.9 x 5.9 x 2.4 in. (20 x 15 x 6.1 cm)
Weight
2.75 lb (1.25 kg)
