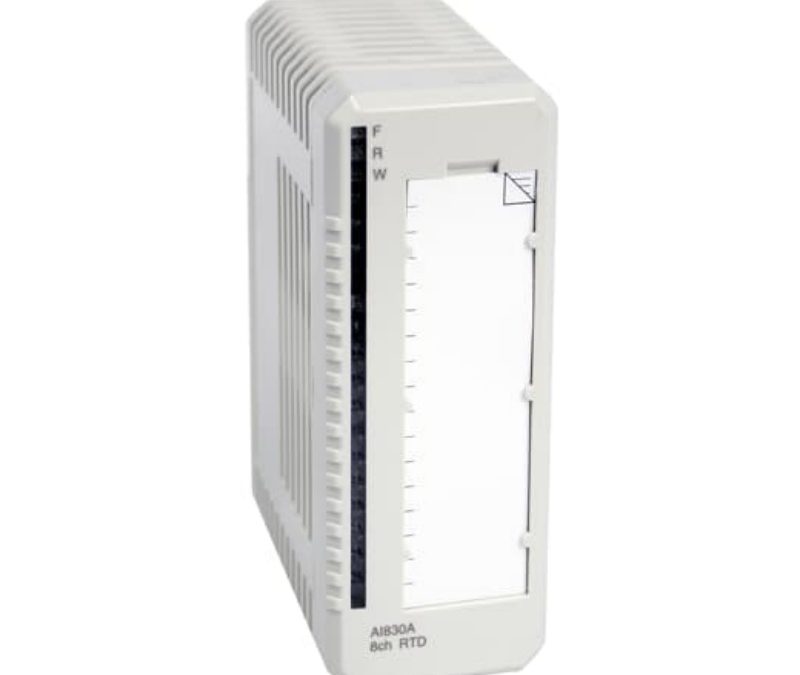

AI830A ABB Analog Input Module
Model: AI830A ABB Analog Input Module
General info Article numbe…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
General info
| Article number | 3BSE040662R1 |
| Type | Analog Input |
| Signal specification | 3-wire RTD: Pt100, Cu10, NI100, Ni120 and resistive potentiometer |
| Number of channels | 8 |
| Signal type | See table in S800 Modules and Termination Units, 3BSE020924 |
| HART | No |
| SOE | No |
| Redundancy | No |
| High integrity | No |
| Intrinsic safety | No |
| Mechanics | S800 |
Dimensions
| Width | 45 mm (1.77”) |
| Depth | 102 mm (4.01”), 111 mm (4.37”) including connector |
| Height | 119 mm (4.7”) |
| Weight | 0.22 kg (0.49 lbs.) |
Detailed data
| Resolution | See table in S800 Modules and Termination Units, 3BSE020924-xxx |
| Isolation | Groupwise isolated from ground |
| Error | Error dependent of the field cable resistance: Rerr = R* (0.005 + ∆R/100) Terr°C = Rerr / (R0 * TCR) Terr°F = Terr°C * 1.8 |
| Temperature drift | See table in S800 Modules and Termination Units, 3BSE020924-xxx |
| Update cycle time | 150 + 95 * (number of active channels) ms |
| CMRR, 50Hz, 60Hz | >120 dB (at 10Ω load) |
| NMRR, 50Hz, 60Hz | >60 dB |
| Rated insulation voltage | 50 V |
| Dielectric test voltage | 500 V a.c. |
| Power dissipation | 1.6 W |
| Current consumption +5 V Modulebus | 70 mA |
| Current consumption +24 V Modulebus | 50 mA |
