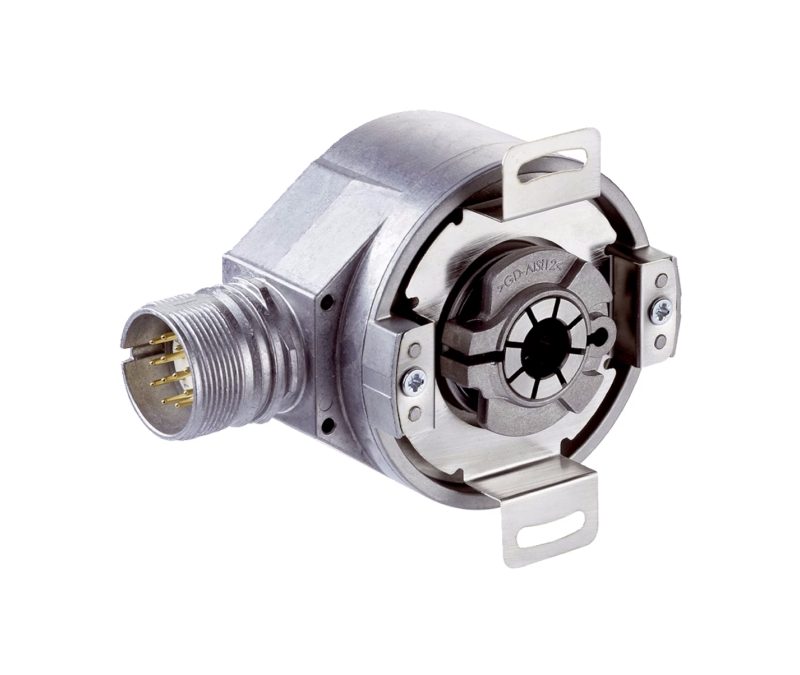

AFM60B-BHAA004096 SICK ABSOLUTE ENCODER
Model: AFM60B-BHAA004096 SICK ABSOLUTE ENCODER
Number of steps per revolu…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Number of steps per revolution (max. resolution) | 4,096 (12 bit) |
| Number of revolutions | 4,096 (12 bit) |
| Max. resolution (number of steps per revolution x number of revolutions) | 12 bit x 12 bit (4,096 x 4,096) |
| Error limits G | 0.05° 1) |
| Repeatability standard deviation σr | 0.002° 2) |
| Communication interface | SSI |
| Initialization time | 50 ms 1) |
| Position forming time | < 1 µs |
| Code type | Gray |
| Code sequence parameter adjustable | CW/CCW (V/R̅) parameter adjustable |
| Clock frequency | ≤ 2 MHz 2) |
| Set (electronic adjustment) | H-active (L = 0 – 3 V, H = 4,0 – Us V) |
| CW/CCW (counting sequence when turning) | L-active (L = 0 – 1,5 V, H = 2,0 – Us V) |
