ABB

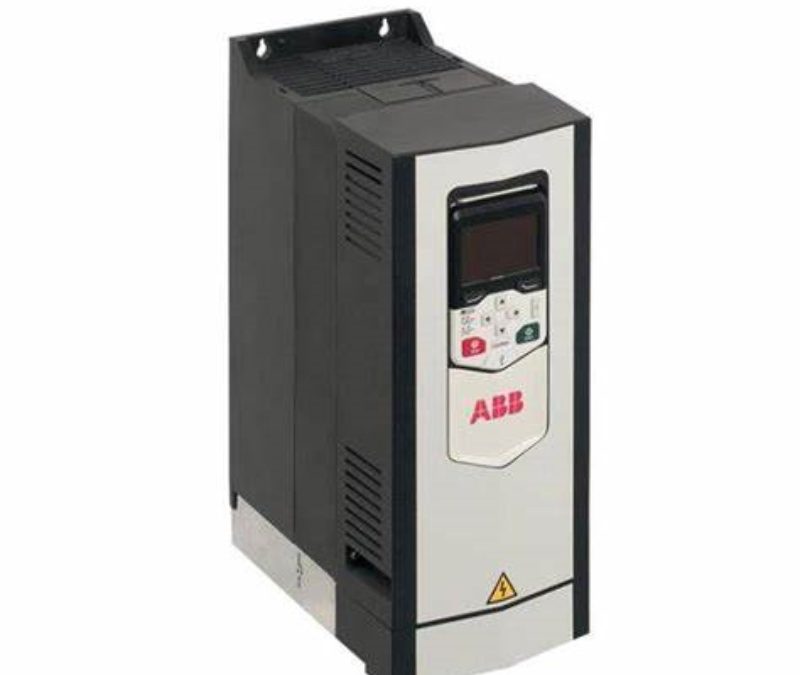

ACS880-01-145A-3+D150+N5050 ABB single drives
Model: ACS880-01-145A-3+D150+N5050 ABB single drives
Country of Origin: Finland…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Country of Origin:
Finland (FI)
Customs Tariff Number:
85044086
HS Code:
850440– Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description:
ACS880-01-145A-3 PN: 75 kW, IN: 145 A
Made To Order:
Yes
Minimum Order Quantity:
1 piece
Order Multiple:
1 piece
Quote Only:
No
Selling Unit of Measure:
piece
Container Information
Gross Volume:
65.404 dm³
Dimensions
Product Net Weight:
42.2 kg
93.035 lb
Product Net Depth / Length:
357 mm
14.055 in
Product Net Height:
727 mm
Product Net Width:
252 mm
9.921 in
Package Level 1 Depth / Length:
880 mm
Package Level 1 Height:
536 mm
Package Level 1 Width:
335 mm
Package Level 1 Units:
1 carton
Technical
Number of Phases:
3
Degree of Protection:
IP21
Enclosure Type NEMA:
Type1
Altitude:
4000 m
Operating Humidity (RHamb):
5 … 95
Sound dB (A):
68 dB(A)
Multiple Battery Information:
Lithium Coin, CR2032, 220 mAh, 3 V, 2 pcs, 6 g
Frequency (f):
47.5 … 63 Hz
Frame Size:
R6
Input Voltage (Uin):
380 … 415 V
Mounting Type:
Wall-mounted
Communication Protocol:
CAN
DeviceNet
EtherNet/IP
MODBUS
Other Bus Systems
PROFIsafe
PROFIBUS
PROFINET IO
Number of Hardware Interfaces:
Industrial Ethernet 0
Other 4
Parallel 0
PROFINET 0
RS-232 0
RS-422 0
RS-485 1
Serial TTY 0
USB 1
Includes:
Control unit
PC connection
Analog Inputs:
2
Analog Outputs:
2
Number of Digital In/Outputs:
6 / 2
Output Current, Heavy-Duty Use (IHD):
105 A
Output Current, Light-Overload Use (ILD):
138 A
Output Current, Normal Use (In):
145 A
Output Power, Heavy-Duty Use (PHD):
55 kW
Output Power, Light-Overload Use (PLD):
75 kW
Output Power, Normal Use (Pn):
75 kW
Apparent Power Output:
100 kV·A
Efficiency Level:
IE2
Standby Loss:
42 W
