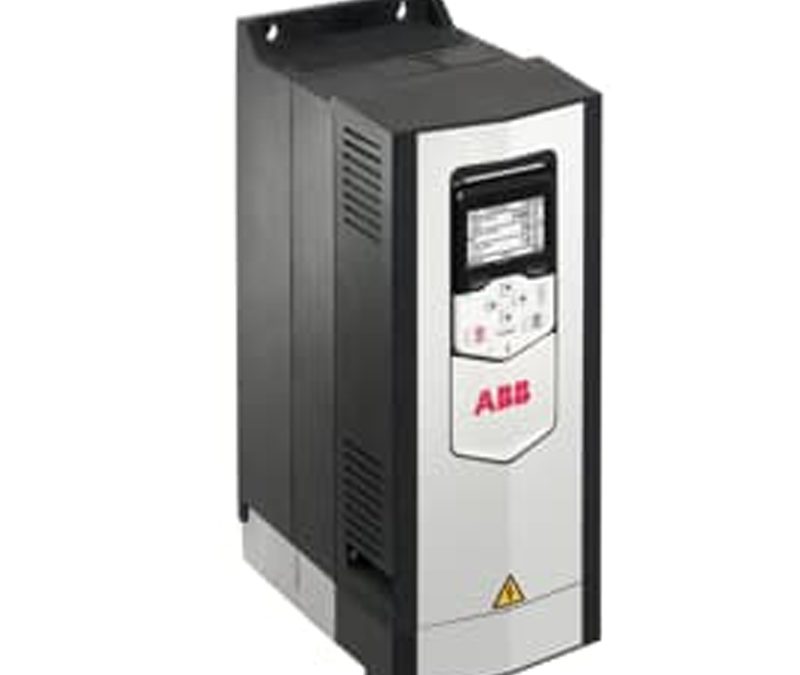

ACS880-01-05A6-3+N5050+N8015+P944 ABB VFD Single Drives

Gross Volume:14.327 dm³
Dimensions
Product Net Weight:7.0 kg
15.432 lb
Product Net Depth / Length:226 mm
8.898 in
Product Net Height:409 mm
Product Net Width:155 mm
6.102 in
Package Level 1 Depth / Length:574 mm
Package Level 1 Height:281 mm
Package Level 1 Width:256 mm
Package Level 1 Units:1 carton
Technical
Number of Phases:3
Degree of Protection:IP21
Enclosure Type NEMA:Type1
Altitude:4000 m
Operating Humidity (RHamb):5 … 95
Sound dB (A):50 dB(A)
Multiple Battery Information:Lithium Coin, CR2032, 220 mAh, 3 V, 2 pcs, 6 g
Frequency (f):47.5 … 63 Hz
Frame Size:R1
Input Voltage (Uin):380 … 415 V
Mounting Type:Wall-mounted
Communication Protocol:CAN
DeviceNet
EtherNet/IP
MODBUS
Other Bus Systems
PROFIsafe
PROFIBUS
PROFINET IO
Number of Hardware Interfaces:Industrial Ethernet 0
Other 4
Parallel 0
PROFINET 0
RS-232 0
RS-422 0
RS-485 1
Serial TTY 0
USB 1
Includes:Control unit
PC connection
Analog Inputs:2
Analog Outputs:2
Number of Digital In/Outputs:6 / 2
Output Current, Heavy-Duty Use (IHD):4.0 A
Output Current, Light-Overload Use (ILD):5.3 A
Output Current, Normal Use (In):5.6 A
Output Power, Heavy-Duty Use (PHD):1.5 kW
Output Power, Light-Overload Use (PLD):2.2 kW
Output Power, Normal Use (Pn):2.2 kW
Apparent Power Output:3.9 kV·A
Efficiency Level:IE2
Standby Loss:23 W
