ABB

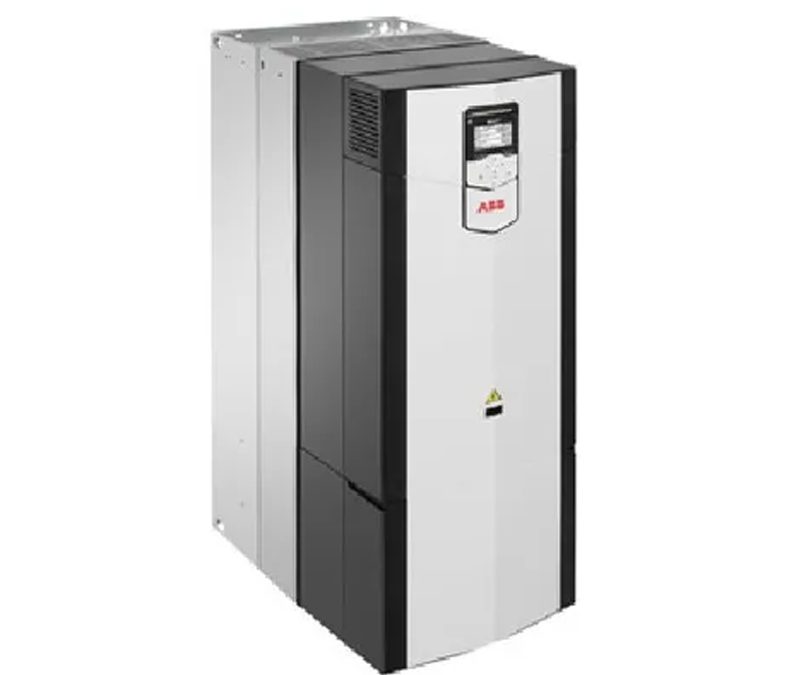

ACS880-01-052A-5+K451 ABB Frequency converter
Model: ACS880-01-052A-5+K451 ABB Frequency converter
Product Net Weight:18.6 kg…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Product Net Weight:18.6 kg
41.006 lb
Product Net Depth / Length:274 mm
10.787 in
Product Net Height:580 mm
Product Net Width:203 mm
7.992 in
Package Level 1 Depth / Length:691 mm
Package Level 1 Height:329 mm
Package Level 1 Width:290 mm
Package Level 1 Units:1 carton
Technical
Number of Phases:3
Degree of Protection:IP21
Enclosure Type NEMA:Type1
Altitude:4000 m
Operating Humidity (RHamb):5 … 95
Sound dB (A):64 dB(A)
Multiple Battery Information:Lithium Coin, CR2032, 220 mAh, 3 V, 2 pcs, 6 g
Frequency (f):47.5 … 63 Hz
Frame Size:R4
Input Voltage (Uin):380 … 500 V
Mounting Type:Wall-mounted
Communication Protocol:CAN
DeviceNet
EtherNet/IP
MODBUS
Other Bus Systems
PROFIsafe
PROFIBUS
PROFINET IO
Number of Hardware Interfaces:Industrial Ethernet 0
Other 4
Parallel 0
PROFINET 0
RS-232 0
RS-422 0
RS-485 1
Serial TTY 0
USB 1
Includes:Control unit
PC connection
Analog Inputs:2
Analog Outputs:2
Number of Digital In/Outputs:6 / 2
Output Current, Heavy-Duty Use (IHD):40 A
Output Current, Light-Overload Use (ILD):49 A
Output Current, Normal Use (In):52 A
Output Power, Heavy-Duty Use (PHD):22 kW
Output Power, Light-Overload Use (PLD):30 kW
Output Power, Normal Use (Pn):30 kW
Apparent Power Output:45 kV·A
Efficiency Level:IE2
Standby Loss:31 W
