ABB

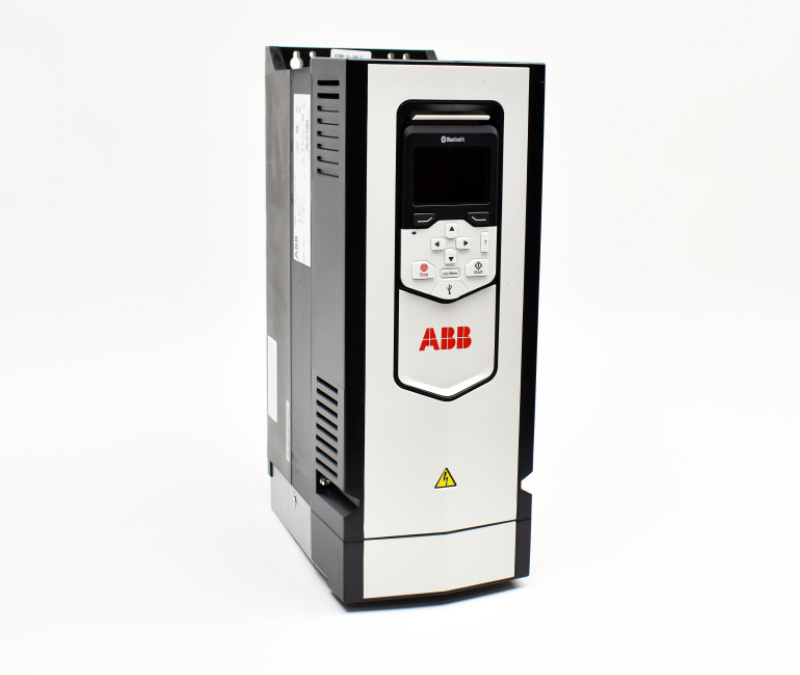

ACS880-01-04A8-5 ABB AC Drive
Model: ACS880-01-04A8-5 ABB AC Drive
Specifications Specificati…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Specifications
| In Stock | Yes |
|---|---|
| Ships Factory Direct | No |
| Manufacturer Part Number | ACS880-01-04A8-5 |
| Manufacturer | ABB |
| Product Series | ACS880 |
| Family Series | ABB Drives, ACS880 Series |
| Description | Drive, AC, 2.0HP, 480V, 3.4A, CT, N1 480Vin 3PH 3.0HP 4.8A VT W/DB Trans 16.0in.Hx6.1in.Wx8.9in.D ACS880 |
| Input Phase | 3 |
| HP (Constant Torque Rating) | 2 hp |
| HP (Variable Torque Rating) | 3 hp |
| Amps (Constant Torque Rating) | 3.4 A |
| Amps (Variable Torque Rating) | 4.8 A |
| Braking Type | DC Injection, Dynamic Braking, Flux Braking |
| Closed Loop | Optional |
| AC Line Regenerative | No |
| Operator Controls | Keypad Included |
| IP Rating | IP21 |
| NEMA Rating | NEMA 1 |
| Motor Control-Max Level | Direct Torque Control |
| Mounting | Panel |
| Nominal Input VAC | 380 VAC, 415 VAC, 480 VAC |
| Input Range Voltage (AC) | 380-500 VAC |
| Max Frequency | 500 Hz |
| Frame Size | R1 |
| Dynamic Braking Trans | Included |
| Comments | Includes Safe Torque Off, Removable Memory Unit And Customizable Keypad With Startup Assistant. |
| Depth | 8.9 “ |
| Width | 6.1 “ |
| Height | 16 “ |
| Net Weight | 13 lbs |
| Gross Weight | 13 lbs |
