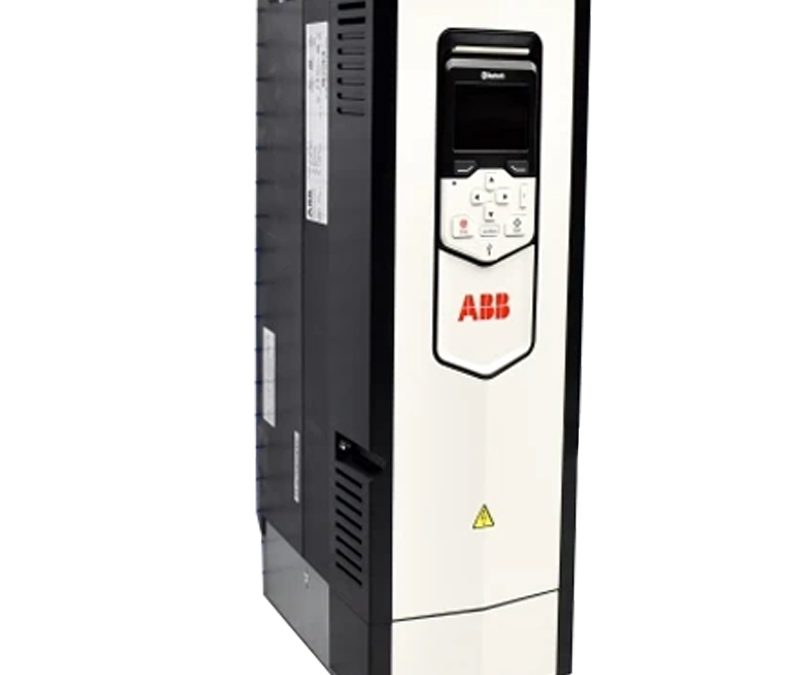

ACS880-01-027A-5+K45 ABB Frequency converter
Model: ACS880-01-027A-5+K45 ABB Frequency converter
Gross Volume:21.324 dm³ Di…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Gross Volume:21.324 dm³
Dimensions
Product Net Weight:10.8 kg
23.810 lb
Product Net Depth / Length:261 mm
10.276 in
Product Net Height:475 mm
Product Net Width:172 mm
6.772 in
Package Level 1 Depth / Length:634 mm
Package Level 1 Height:316 mm
Package Level 1 Width:256 mm
Package Level 1 Units:1 carton
Technical
Number of Phases:3
Degree of Protection:IP21
Enclosure Type NEMA:Type1
Altitude:4000 m
Operating Humidity (RHamb):5 … 95
Sound dB (A):60 dB(A)
Multiple Battery Information:Lithium Coin, CR2032, 220 mAh, 3 V, 2 pcs, 6 g
Frequency (f):47.5 … 63 Hz
Frame Size:R3
Input Voltage (Uin):380 … 500 V
Mounting Type:Wall-mounted
Communication Protocol:CAN
DeviceNet
EtherNet/IP
MODBUS
Other Bus Systems
PROFIsafe
PROFIBUS
PROFINET IO
Number of Hardware Interfaces:Industrial Ethernet 0
Other 4
Parallel 0
PROFINET 0
RS-232 0
RS-422 0
RS-485 1
Serial TTY 0
USB 1
Includes:Control unit
PC connection
Analog Inputs:2
Analog Outputs:2
Number of Digital In/Outputs:6 / 2
Output Current, Heavy-Duty Use (IHD):21 A
Output Current, Light-Overload Use (ILD):26 A
Output Current, Normal Use (In):27 A
Output Power, Heavy-Duty Use (PHD):11.0 kW
Output Power, Light-Overload Use (PLD):15.0 kW
Output Power, Normal Use (Pn):15.0 kW
Apparent Power Output:23 kV·A
Efficiency Level:IE2
Standby Loss:27 W
Complete Drive Module Efficiency (61800-9-2):
Operating Point Frequency / Current Absolute Loss Relative Loss Efficiency
0 / 25 % 127 W 0.5 % 90.7 %
0 / 50 % 163 W 0.7 % 93.6 %
0 / 100 % 250 W 1.1 % 95.0 %
50 / 25 % 132 W 0.6 % 95.1 %
50 / 50 % 174 W 0.7 % 96.6 %
50 / 100 % 284 W 1.2 % 97.2 %
90 / 50 % 191 W 0.8 % 97.9 %
90 / 100 % 326 W 1.4 % 98.2 %
Temperature Rating:Maximum 40 °C
Classifications
ETIM 8:EC001857 – Frequency converter =< 1 kV
ETIM 9:EC001857 – Frequency converter =< 1 kV
UNSPSC:39122001
Environmental
SCIP:4ac5f0da-ba5c-4c9a-bfbf-279008b38a92 Finland (FI)
WEEE Category:5. Small Equipment (No External Dimension More Than 50 cm)
Additional Information
Product Main Type:ACS880-01
Product Name:Frequency converter
