ABB

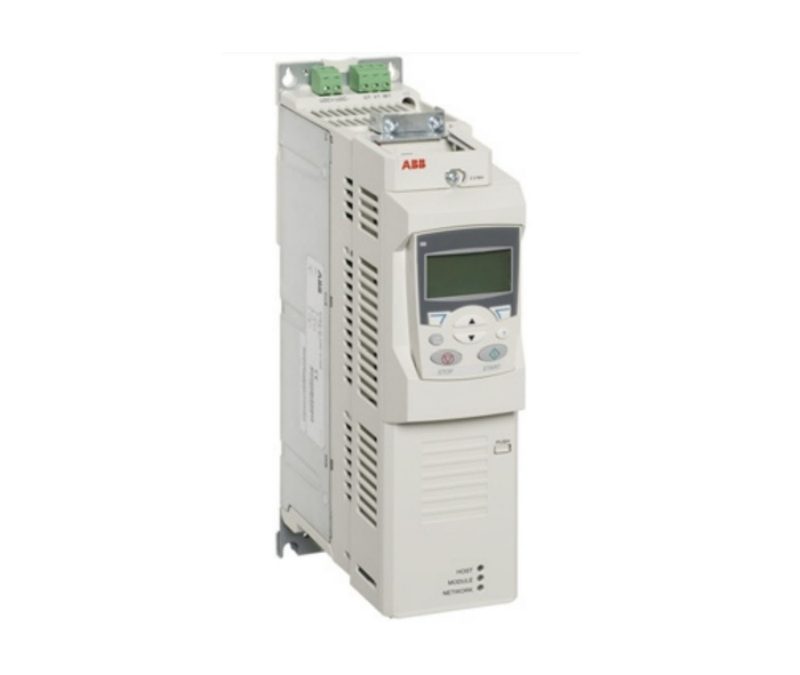

ACS850-04-225A-5 ABB Variable Speed Drives
Model: ACS850-04-225A-5 ABB Variable Speed Drives
ACS850 stands out in the A…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
ACS850 stands out in the ABB machinery inverters portfolio for its wide power range and high-performance speed and torque control. The embedded PLC, configurable by using an SPC block program, offers a unique possibility for configuring the inverter to best support your machine. By choosing an ABB machinery drive, machine builders not only get all the clever things inside the drive, but also everything outside: the entire global ABB network. This means a full range of products and services designed to support your business in an optimal way.
- Designed for speed and torque machinery applications for synchronous, permanent magnet and asynchronous motors
- Accurate motor torque and speed control even without feedback provided by direct torque control (DTC) technology
- Compact design for both single-axis and common DC
- Wide variety of different communication protocols and mechanical options for cabinet mounting available
- Functional safety as standard
Additional information:
| Manufacturer: | ABB |
| Series: | ACS850 |
| Model: | ACS850-04-225A-5+J414 |
| Application: | pumps / fans / cranes / general purpose |
| Capacity, kW: | 110 |
| Current, А: | 225 |
| Main power supply, V: | 380-500 |
| Phase: | 3 |
| Output frequency, Hz: | 0-500 |
| Enclosure: | IP20 |
| Overload capacity, % per 1 min.: | 110 LD,150 HD |
| EMC filter: | optional |
| Braking unit: | + |
| Analog input: | 2 |
| Digital input: | 6 |
| Analog output: | 2 |
| Digital output: | 2 |
| Relay output: | 3 |
| RS485 (Modbus RTU): | + |
| PID: | PID – regulation |
| V/f control mode: | + |
| Vector control with feedback: | – |
| Sensorless vector control: | – |
| Operation temperature, °С: | -10…..+55 |
| Storage temperature, °С: | -40……+70 |
| Dimensions (W x H x D), mm: | 312x700x443 |
| Weight, kg: | 67 |
