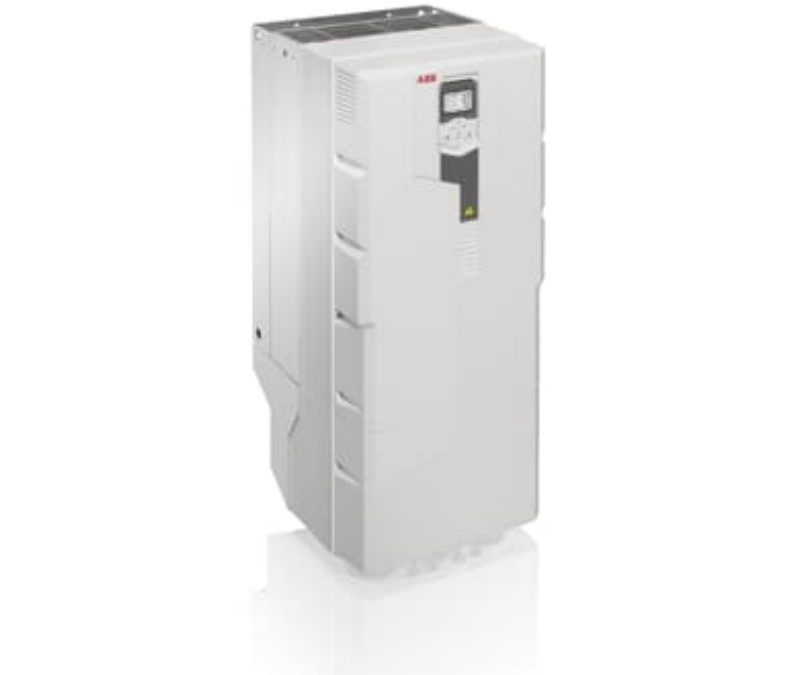

ACS580-01-430A-4 ABB AC general purpose wall-mounted drive
Model: ACS580-01-430A-4 ABB AC general purpose wall-mounted drive
Dimensions Product Net Wei…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Dimensions
Product Net Weight:97 kg
213.849 lb
Product Net Depth / Length:418.00 mm
16.46 in
Product Net Height: 955.00 mm
37.60 in
Product Net Width:380.00 mm
14.96 in
Package Level 1 Depth / Length:1145.00 mm
45.079 in
Package Level 1 Height:630.00 mm
24.803 in
Package Level 1 Width:485.00 mm
19.094 in
Package Level 1 Units:1 box
Technical
Number of Phases:3
Degree of Protection:IP21
Enclosure Type NEMA:Type1
Altitude:1000 m
Operating Humidity (RHamb):5 … 95
Sound dB (A):68 dB(A)
Multiple Battery Information:Lithium Coin, CR2032, 220 mAh, 3 V, 1 pc, 3 g
Frequency (f):47.5 … 63 Hz
Frame Size:R9
Input Voltage (Uin):380 … 480 V
Number of Digital In/Outputs:6 / 3
Output Current, Heavy-Duty Use (IHD):363 A
Output Current, Light-Overload Use (ILD):400 A
Output Current, Normal Use (In):430 A
Output Power, Heavy-Duty Use (PHD):200 kW
Output Power, Light-Overload Use (PLD):200 kW
Output Power, Normal Use (Pn):250 kW
Apparent Power Output:298 kV·A
Efficiency Level:IE2
Standby Loss:80 W
