ABB

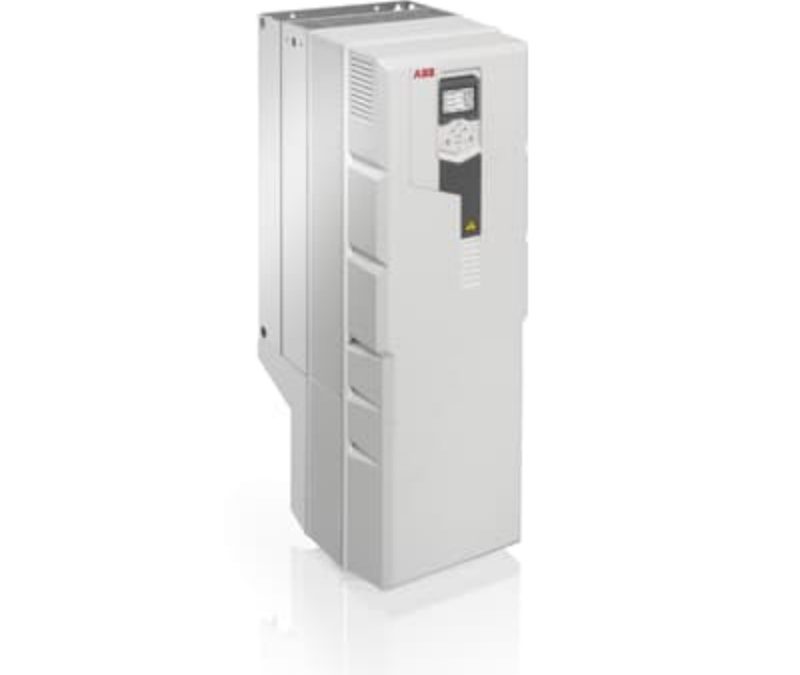

ACS580-01-206A-4 ABB Frequency converter
Model: ACS580-01-206A-4 ABB Frequency converter
Dimensions Product Net Wei…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Dimensions
Product Net Weight:54 kg
119.050 lb
Product Net Depth / Length:370.00 mm
14.57 in
Product Net Height:880.00 mm
34.65 in
Product Net Width:284.00 mm
11.18 in
Package Level 1 Depth / Length:992.00 mm
39.055 in
Package Level 1 Height:568.00 mm
22.362 in
Package Level 1 Width:400.00 mm
15.748 in
Package Level 1 Units:1 carton
Technical
Number of Phases:3
Degree of Protection:IP21
Enclosure Type NEMA:Type1
Altitude:1000 m
Operating Humidity (RHamb):5 … 95
Sound dB (A):67 dB(A)
Multiple Battery Information:Lithium Coin, CR2032, 220 mAh, 3 V, 1 pc, 3 g
Frequency (f):47.5 … 63 Hz
Frame Size:R7
Input Voltage (Uin):380 … 480 V
Analog Inputs:2
Analog Outputs:2
Number of Digital In/Outputs:6 / 3
Output Current, Heavy-Duty Use (IHD):169 A
Output Current, Light-Overload Use (ILD):196 A
Output Current, Normal Use (In):206 A
Output Power, Heavy-Duty Use (PHD):90 kW
Output Power, Light-Overload Use (PLD):110 kW
Output Power, Normal Use (Pn):110 kW
Apparent Power Output:143 kV·A
Efficiency Level:IE2
Standby Loss:36 W
