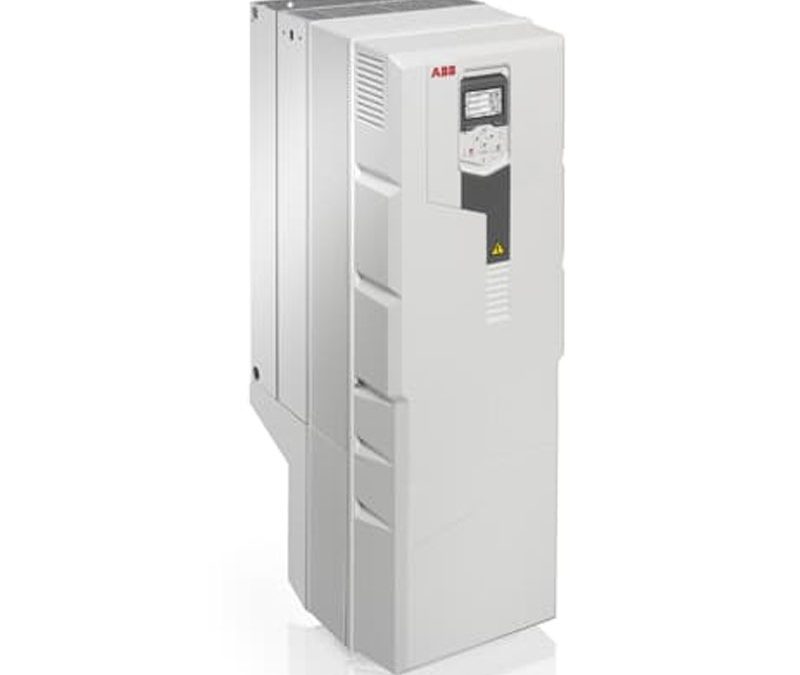

ACS580-01-169A-4+K454 ABB LV AC general purpose wall-mounted drive

Dimensions
Product Net Weight:54 kg
119.050 lb
Product Net Depth / Length:370.00 mm
14.57 in
Product Net Height:880.00 mm
34.65 in
Product Net Width:284.00 mm
11.18 in
Package Level 1 Depth / Length:992.00 mm
39.055 in
Package Level 1 Height:568.00 mm
22.362 in
Package Level 1 Width:400.00 mm
15.748 in
Package Level 1 Units:1 carton
Technical
Number of Phases:3
Degree of Protection:IP21
Enclosure Type NEMA:Type1
Altitude:1000 m
Operating Humidity (RHamb):5 … 95
Sound dB (A):67 dB(A)
Multiple Battery Information:Lithium Coin, CR2032, 220 mAh, 3 V, 1 pc, 3 g
Frequency (f):47.5 … 63 Hz
Frame Size:R7
Input Voltage (Uin):380 … 480 V
Mounting Type:Wall-mounted
Communication Protocol:CAN
DeviceNet
EtherNet/IP
MODBUS
Other Bus Systems
PROFIBUS
PROFINET IO
TCP/IP
Number of Hardware Interfaces:Industrial Ethernet 0
Other 2
Parallel 2
PROFINET 0
RS-232 0
RS-422 0
RS-485 1
Serial TTY 0
USB 1
Includes:Control unit
PC connection
Analog Inputs:2
Analog Outputs:2
Number of Digital In/Outputs:6 / 3
Output Current, Heavy-Duty Use (IHD):145 A
Output Current, Light-Overload Use (ILD):161 A
Output Current, Normal Use (In):169 A
Output Power, Heavy-Duty Use (PHD):75 kW
Output Power, Light-Overload Use (PLD):90 kW
Output Power, Normal Use (Pn):90 kW
Apparent Power Output:117 kV·A
Efficiency Level:IE2
Standby Loss:36 W
