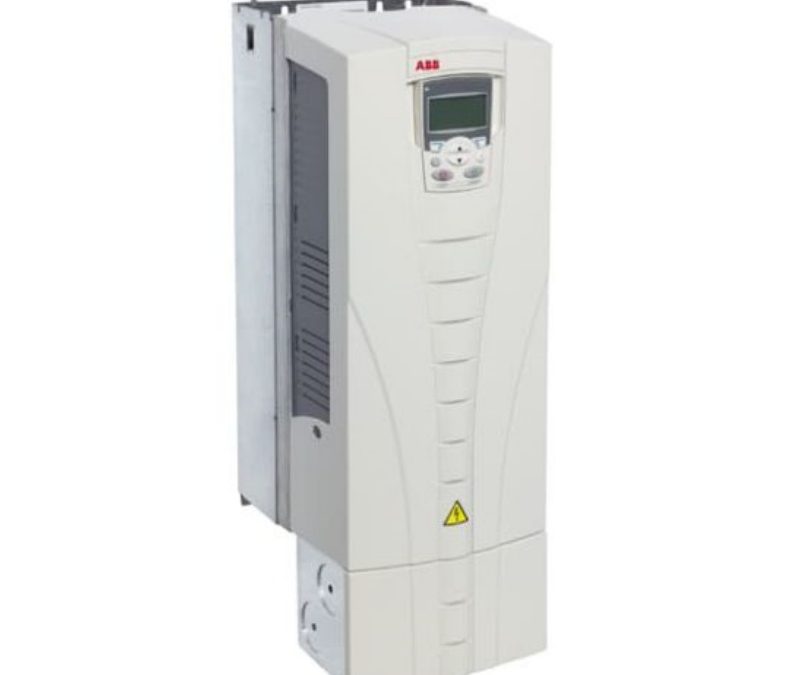

ACS550-U1-031A-4 ABB Drives
Model: ACS550-U1-031A-4 ABB Drives
Specifications Specificati…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Specifications
| In Stock | No |
|---|---|
| Ships Factory Direct | No |
| Manufacturer Part Number | ACS550-U1-031A-4 |
| Manufacturer | ABB |
| Product Series | ACS550 |
| Family Series | ABB Drives, ACS550 Series |
| Description | Drive, AC, 15HP, 480V, 23.0A, CT, N1 480Vin 3PH 20HP 31.0A VT 23.0in.Hx8.0in.Wx9.1in.D ACS550 |
| Input Phase | 3 |
| HP (Constant Torque Rating) | 15 hp |
| HP (Variable Torque Rating) | 20 hp |
| Amps (Constant Torque Rating) | 23 A |
| Amps (Variable Torque Rating) | 31 A |
| Braking Type | DC Injection, Dynamic Braking Transistor Optional (External) |
| Closed Loop | Optional |
| AC Line Regenerative | No |
| Operator Controls | Keypad Included |
| IP Rating | IP21 |
| NEMA Rating | NEMA 1 |
| Motor Control-Max Level | Open Loop Vector (Sensorless Vector) |
| Mounting | Panel |
| Nominal Input VAC | 380 VAC, 415 VAC, 480 VAC |
| Input Range Voltage (AC) | 380-480 VAC |
| Max Frequency | 500 Hz |
| Frame Size | UX1-3 |
| Dynamic Braking Trans | Optional (External) |
| Comments | Advanced Control Panel incl. graphic backlit display capable of displaying 3 values or bar graphs. |
| Depth | 9.1 “ |
| Width | 8 “ |
| Height | 23 “ |
| Net Weight | 35 lbs |
| Gross Weight | 54 lbs |
