ABB

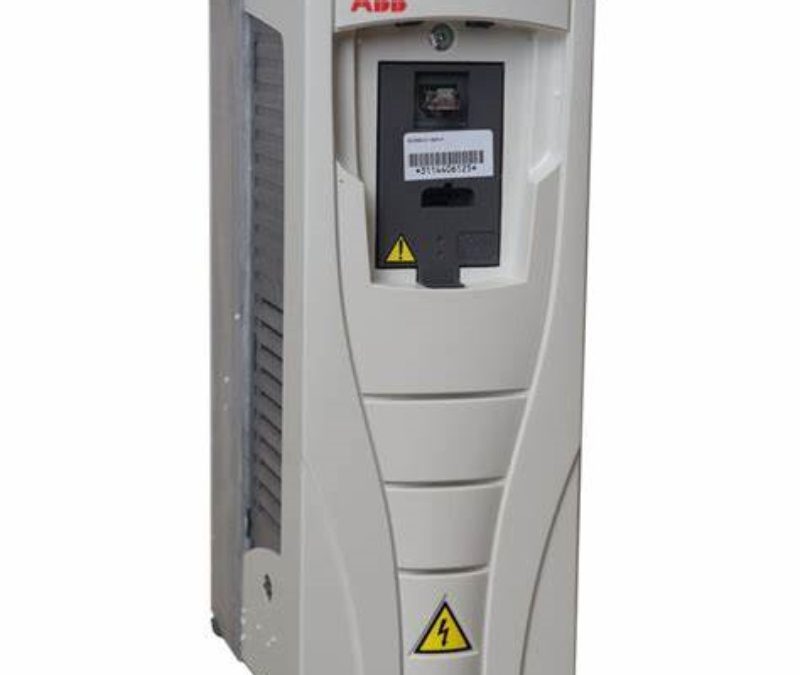

ACS510-01-046A-4 ABB Inverter Drive
Model: ACS510-01-046A-4 ABB Inverter Drive
Country of Origin: China (…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Country of Origin:
China (CN)
Customs Tariff Number:
85044099
Invoice Description:
ACS510-01-046A-4,46A,380V,IP21
Made To Order:
No
Minimum Order Quantity:
1 piece
Order Multiple:
1 piece
Quote Only:
No
Selling Unit of Measure:
piece
Dimensions
Product Net Weight:
18 kg
Product Net Depth / Length:
675 mm
Product Net Height:
384 mm
Product Net Width:
284 mm
Package Level 1 Depth / Length:
700 mm
Package Level 1 Height:
400 mm
Package Level 1 Width:
290 mm
Package Level 1 Units:
0 carton
Technical
Number of Phases:
3
Degree of Protection:
IP21
Enclosure Type NEMA:
Type1
Frequency (f):
47.5 … 63 Hz
Frame Size:
R3
Input Voltage (Uin):
380 … 480 V
Mounting Type:
Wall-mounted_NO UNIT$
Output Current, Normal Use (In):
46 A
Output Power, Normal Use (Pn):
22 kW
Apparent Power Output:
32 kV·A
Efficiency Level:
IE2
Standby Loss:
15 W
Complete Drive Module Efficiency (61800-9-2):
| Operating Point Frequency / Current |
Absolute Loss |
Relative Loss |
Efficiency |
|---|---|---|---|
|
0 / 25 %
|
213 W
|
0.7 %
|
88.8 %
|
|
0 / 50 %
|
281 W
|
0.9 %
|
92.1 %
|
|
0 / 100 %
|
514 W
|
1.6 %
|
92.7 %
|
|
50 / 25 %
|
240 W
|
0.8 %
|
93.6 %
|
|
50 / 50 %
|
345 W
|
1.1 %
|
95.2 %
|
|
50 / 100 %
|
685 W
|
2.1 %
|
95.2 %
|
|
90 / 50 %
|
441 W
|
1.4 %
|
96.5 %
|
|
90 / 100 %
|
971 W
|
3 %
|
96.2 %
|
Temperature Rating:
40 °C
Classifications
UNSPSC:
39122001
Environmental
WEEE Category:
Product Not in WEEE Scope
Additional Information
Product Name:
Frequency Converter
