ABB

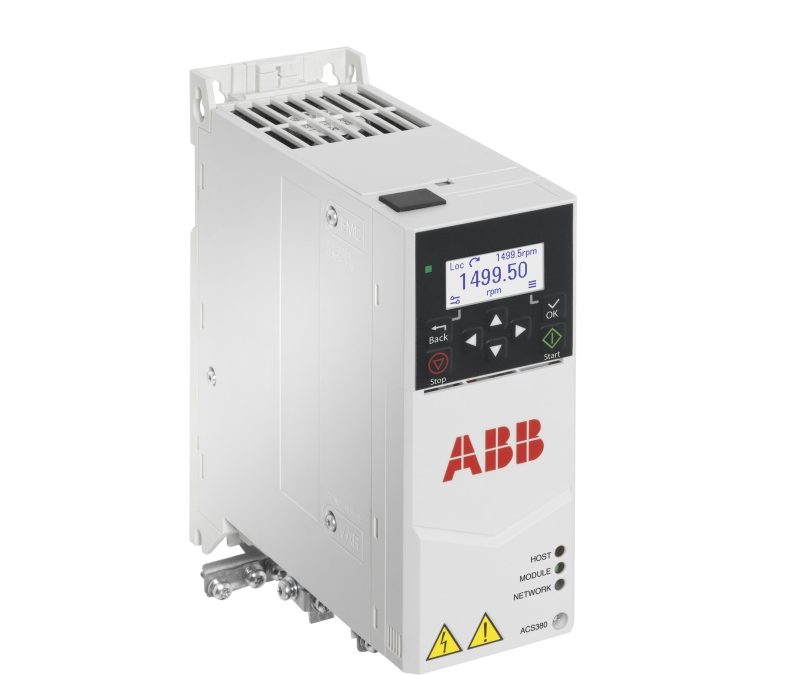

ACS380-040N-04A0-4 ABB Variable Speed Drives – Inverters
Model: ACS380-040N-04A0-4 ABB Variable Speed Drives – Inverters
Specifications Specificati…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Specifications
| In Stock | Yes |
|---|---|
| Ships Factory Direct | No |
| Manufacturer Part Number | ACS380-040N-04A0-4 |
| Manufacturer | ABB |
| Product Series | ACS380 |
| Family Series | ABB Drives, ACS380 Series |
| Description | Drive, AC, 1.5HP, 480V, 3.0A, CT, OP 480Vin 3PH 2.0HP 3.5A VT W/DB Trans W/O I/O Or Fieldbus Module |
| Input Phase | 3 |
| HP (Constant Torque Rating) | 1.5 hp |
| HP (Variable Torque Rating) | 2 hp |
| Amps (Constant Torque Rating) | 3 A |
| Amps (Variable Torque Rating) | 3.5 A |
| Braking Type | Dynamic Braking, Flux Braking |
| Closed Loop | Optional |
| AC Line Regenerative | No |
| Operator Controls | Built In |
| IP Rating | IP20 |
| Motor Control-Max Level | Open Loop Vector (Sensorless Vector) |
| Mounting | Panel |
| Nominal Input VAC | 480 VAC |
| Input Range Voltage (AC) | 380-480 VAC |
| Max Frequency | 599 Hz |
| Frame Size | R1 |
| Comments | No I/O + Modbus or fieldbus adapter, sensorless vector control for AC induction and PM motors |
| Depth | 6.85 “ |
| Width | 2.76 “ |
| Height | 8.66 “ |
| Net Weight | 3.5 lbs |
