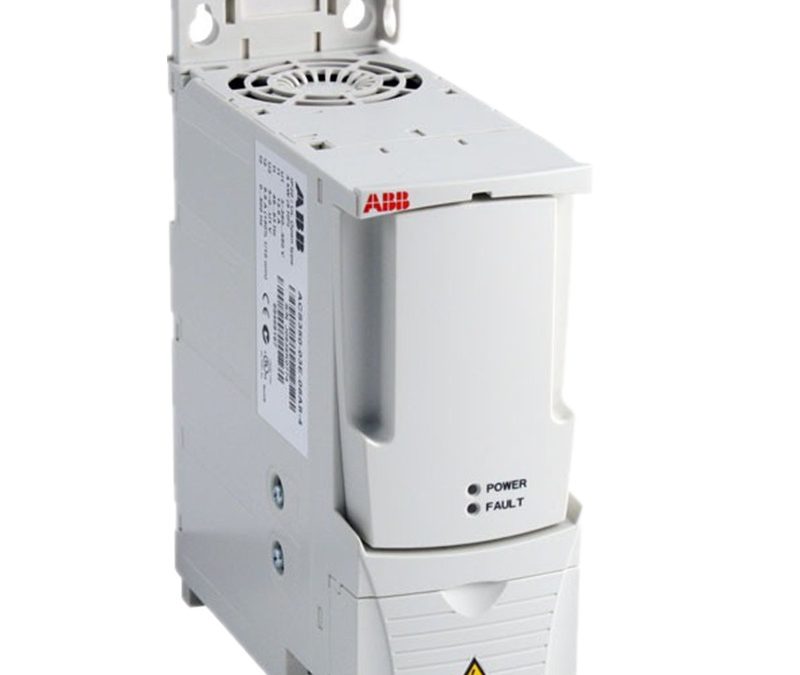

ACS355-03E-08A8-4+N827 ABB PCL Solar 3kW 400V 3ph AC Inverter Drive
Model: ACS355-03E-08A8-4+N827 ABB PCL Solar 3kW 400V 3ph AC Inverter Drive
Ordering Core Credit: 0.00…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Ordering
Core Credit:
0.00
Country of Origin:
China (CN)
Finland (FI)
Customs Tariff Number:
85044085
HS Code:
850440– Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description:
ACS355-03E-08A8-4 Pn 4,0kW, I2n 8,8A IP20.
Made To Order:
No
Minimum Order Quantity:
1 piece
Order Multiple:
1 piece
Quote Only:
No
Selling Unit of Measure:
piece
Dimensions
Product Net Weight:
1.8 kg
Product Net Depth / Length:
161 mm
Product Net Height:
239 mm
Product Net Width:
70 mm
Package Level 1 Depth / Length:
350 mm
Package Level 1 Height:
130 mm
Package Level 1 Width:
220 mm
Package Level 1 Units:
1 carton
Technical
Number of Phases:
3
Degree of Protection:
IP20
Enclosure Type NEMA:
Open Type
Multiple Battery Information:
No battery / cell included
Frequency (f):
50/60 Hz
Frame Size:
R1
Input Voltage (Uin):
380 … 480 V
Mounting Type:
Module for cabinet building
Communication Protocol:
MODBUS
LON
DeviceNet
PROFIBUS
CAN
EtherNet/IP
PROFINET IO
TCP/IP
Other Bus Systems
Number of Hardware Interfaces:
Industrial Ethernet 0
PROFINET 0
RS-232 1
RS-422 0
RS-485 1
Serial TTY 0
USB 0
Parallel 0
Other 1
Includes:
Without control unit
Without optical interface
With PC connection
Analog Inputs:
2
Analog Outputs:
1
Number of Digital In/Outputs:
5/1
Output Current, Normal Use (In):
8.8 A
Output Power, Light-Overload Use (PLD):
4 kW
Output Power, Normal Use (Pn):
4 kW
Apparent Power Output:
6.1 kV·A
Efficiency Level:
IE2
Standby Loss:
8 W
Πλήρης απόδοση μονάδας οδήγησης (61800-9-2):
| Σημείο λειτουργίας Συχνότητα / Ρεύμα |
Απόλυτη Απώλεια |
Σχετική Απώλεια |
Απόδοση |
|---|---|---|---|
|
0 / 25 %
|
56 W
|
0.9 %
|
85.2 %
|
|
0 / 50 %
|
66 W
|
1.1 %
|
90.4 %
|
|
0 / 100 %
|
92 W
|
1.5 %
|
92.6 %
|
|
50 / 25 %
|
60 W
|
1.0 %
|
91.8 %
|
|
50 / 50 %
|
73 W
|
1.2 %
|
94.7 %
|
|
50 / 100 %
|
107 W
|
1.8 %
|
95.7 %
|
|
90 / 50 %
|
81 W
|
1.3 %
|
96.6 %
|
|
90 / 100 %
|
127 W
|
2.1 %
|
97.2 %
|
Temperature Rating:
Maximum 40 °C
Classifications
ETIM 8:
EC001857 – Frequency converter =< 1 kV
ETIM 9:
EC001857 – Frequency converter =< 1 kV
UNSPSC:
39122001
Environmental
SCIP:
89151bc5-de13-4ade-aa5f-5835a88f8822 Finland (FI)
Simplified SCIP:
0b3ab510-ab99-40f6-8395-56e787589cec Belgium (BE)
1b7b292c-ee4a-4e37-ad22-eb38de9e5b24 Netherlands (NL)
aa9b385f-e51c-4616-8876-978a31545de6 Denmark (DK)
62a382cb-9b6c-4ef4-8231-819612f26a3d Spain (ES)
6e7295c2-0a00-4c4f-9fbe-bf65811153a4 Portugal (PT)
b9d0c775-8010-4a34-b601-79a39c22d7bc Estonia (EE)
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
Additional Information
Product Name:
Frequency converter
