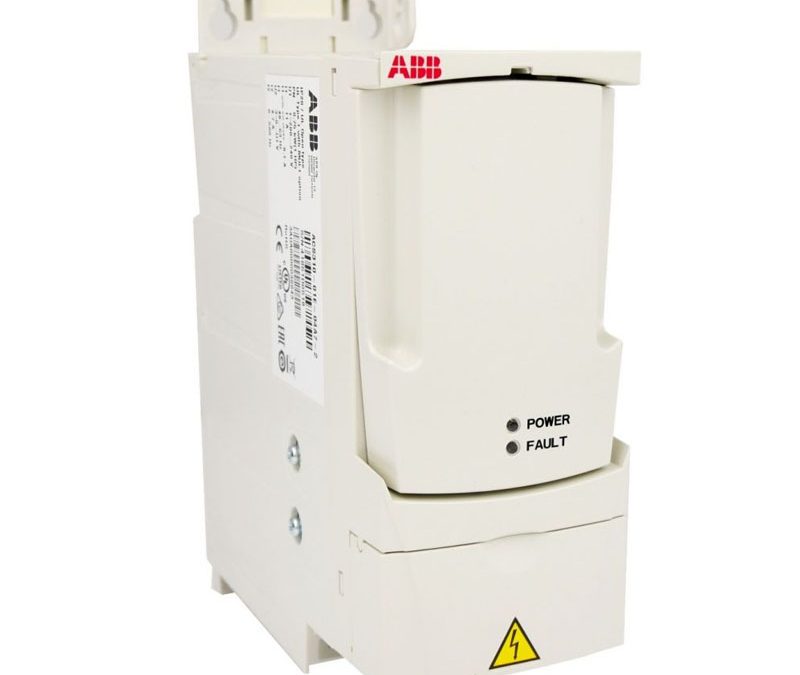

ACS310-03E-06A2-4+J400 ABB Drive module for pumps and fans
Model: ACS310-03E-06A2-4+J400 ABB Drive module for pumps and fans
Dimensions Product Net Wei…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Dimensions
Product Net Weight:1.8 kg
Product Net Depth / Length:217 mm
Product Net Height:344 mm
Product Net Width:132 mm
Package Level 1 Depth / Length:348 mm
Package Level 1 Height:130 mm
Package Level 1 Width:220 mm
Package Level 1 Units:1 carton
Technical
Number of Phases:3
Degree of Protection:IP20
Enclosure Type NEMA:Open Type
Frequency (f):50/60 Hz
Frame Size:R1
Input Voltage (Uin):380 … 480 V
Mounting Type:Module for cabinet building
Communication Protocol:MODBUS
Number of Hardware Interfaces:Industrial Ethernet 0
PROFINET 0
RS-232 1
RS-422 0
RS-485 1
Serial TTY 0
USB 0
Parallel 0
Other 1
Includes:Without control unit
Without optical interface
With PC connection
Analog Inputs:2
Analog Outputs:1
Number of Digital In/Outputs:5/1
Output Current, Light-Overload Use (ILD):5.6 A
Output Current, Normal Use (In):6.2 A
Output Power, Light-Overload Use (PLD):2.2 kW
Output Power, Normal Use (Pn):2.2 kW
Apparent Power Output:4.3 kV·A
Efficiency Level:IE2
Standby Loss:8 W
