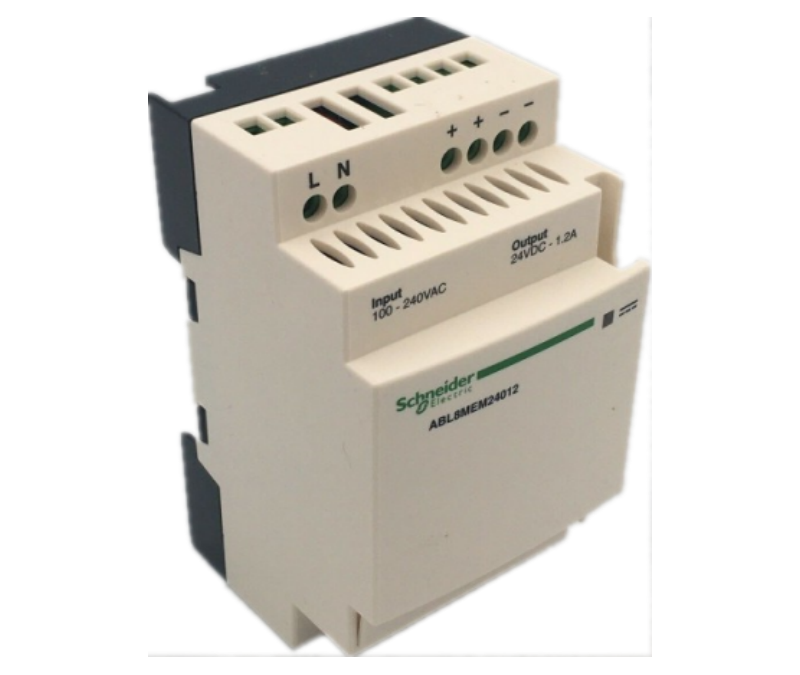

ABL8MEM24012 Schneider power supply
Model: ABL8MEM24012 Schneider power supply
Main Range of Product Modi…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Range of Product | Modicon Power Supply |
|---|---|
| Product or Component Type | Power supply |
| Power supply type | Regulated switch mode |
| Nominal input voltage | 100…240 V AC phase to phase L1-L2 100…240 V AC single phase N-L1 120…250 V DC |
| Kw Rating | 30 W |
| Output voltage | 24 V DC |
| Power supply output current | 1.2 A |
| Depth | 2.32 in (59 mm) |
|---|---|
| Height | 3.94 in (100 mm) |
| Width | 2.13 in (54 mm) |
| Net Weight | 0.43 lb(US) (0.195 kg) |
| Output coupling | Parallel Series |
| Marking | CE |
| Mounting support | 35 x 7.5 mm symmetrical DIN rail panel 2 screws, diameter : 4 mm 35 x 15 mm symmetrical DIN rail |
| Operating position | Vertical |
| Supply | SELV EN/IEC 60950-1 SELV EN/IEC 60204-1 SELV IEC 60364-4-41 |
| Dielectric strength | 3000 V with between input and output |
