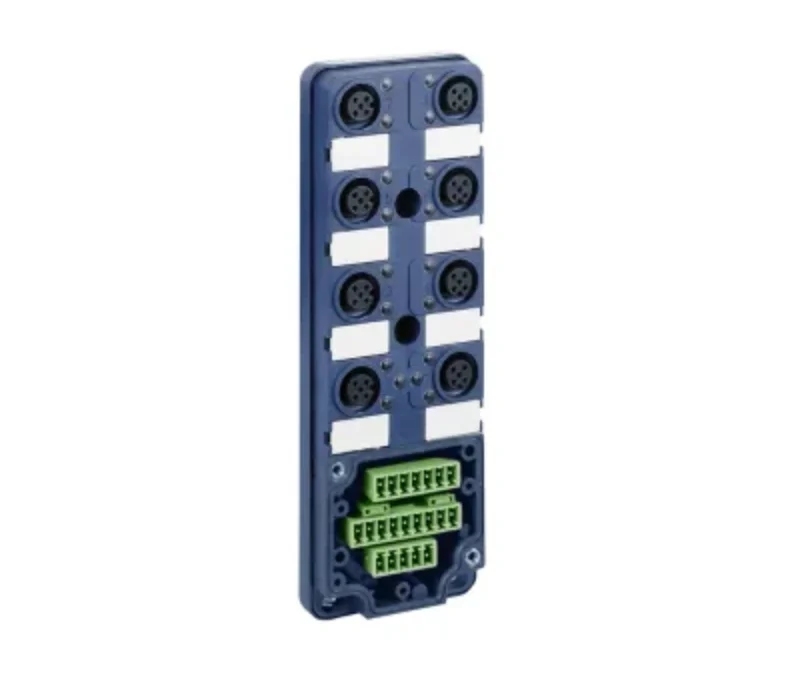

ABE9C1280M Schneider Sensors
Model: ABE9C1280M Schneider Sensors
Main range of product Adva…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| range of product | Advantys ABE9 |
|---|---|
| Product or component type | IP67 passive splitter box |
| Number of channels | 8 |
| Electrical connection | 1 male plug-in connector 8 female connectors M12 5 pins |
| Status LED | Without |
| Number of ways | 16 ways |
|---|---|
| [Ue] rated operational voltage | 24 V DC |
| Current per channel | 4 A |
| Insulation group | Category 3 conforming to VDE 0110 |
| Operating position | Any position |
| Fixing mode | M4 screw fixing |
| Contact resistance | 5000 µOhm |
| Current of common | 16 A 1 mm² 12 A 0.75 mm² |
| Separation of commons | Without or with |
| Net weight | 0.1 kg |
| IP degree of protection | IP67 conforming to IEC 529 |
|---|---|
| product certifications | cULus |
| Ambient air temperature for operation | -20…80 °C |
| Ambient air temperature for storage | -40…85 °C |
| Vibration resistance | 0.2 gn (f= 57…150 Hz) conforming to IEC 68-2-6, FC tests |
| Shock resistance | 30 gn for 11 ms conforming to EN 68-2-2 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.0 cm |
| Package 1 Width | 5.7 cm |
| Package 1 Length | 15.5 cm |
| Package 1 Weight | 132.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 60 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 8.396 kg |
| Warranty | 18 months |
|---|
