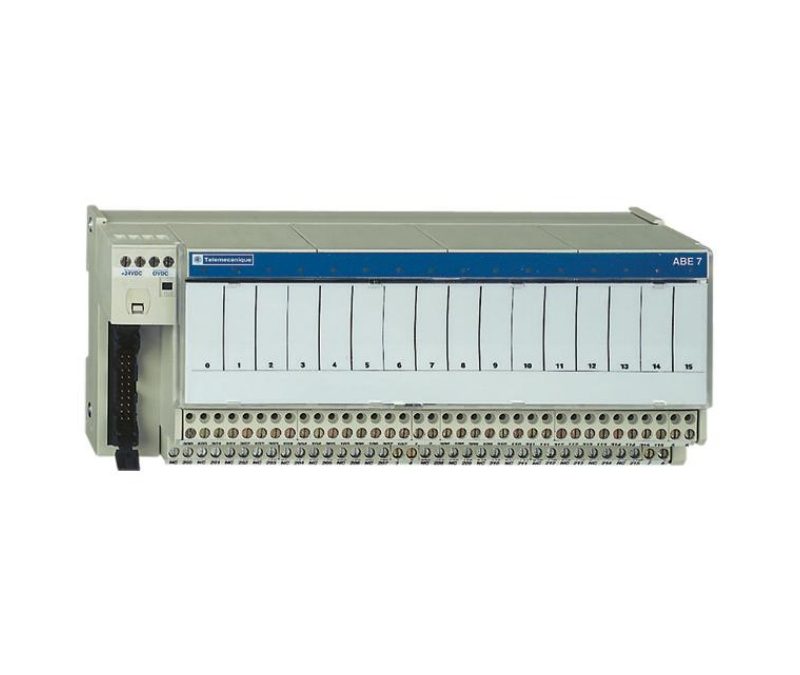

ABE7R16S210 Schneider Electric Sub-Base-Soldered Electromechanical Relays ABE7
Model: ABE7R16S210 Schneider Electric Sub-Base-Soldered Electromechanical Relays ABE7
Manufacturers Schneider Mo…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
Schneider
Model(s)
Schneider module
- Product Type: Base – Welded Electromechanical Relay ABE7
- Product Range: Modicon ABE7
- Product or Component Type : Electromechanical Output Relay Base
- [Us] Rated power supply voltage: PLC terminal 24V DC
- Number of channels: 16
- Number of terminals per channel: 2
- Terminal type: removable
- Polarity distribution: No voltage
- a fixed way:
- Via clamp (35 mm symmetrical DIN rail)
- via screws (solid plate with fixing kit)
- Maximum current per output common: 10 A
- Current per channel: pre-actuator side 5 A
- Minimum switching current: 10 mA at >= 5 V
- Release voltage: 2.4 V at 20°C (PLC side)
- Switching frequency: <= 0.5 Hz, <= 10 Hz
- Threshold trip voltage: 19.7 V at 40 °C
- Dropout Current: 1 mA at 20°C
- Maximum power consumption per channel (W): 0.36 W (PLC side)
- Contact type and composition: 1 NO for pre-actuator side
- Maximum switching voltage:
- 250 V AC 50/60 Hz conforming to IEC 60947-5-1
- 30 V DC conforming to IEC 60947-5-1
- Dimensions(LxWxH): 7.6 cm x 7.6 cm x 22.9 cm
- weight：0.5kg
- country of origin：France
