Schneider

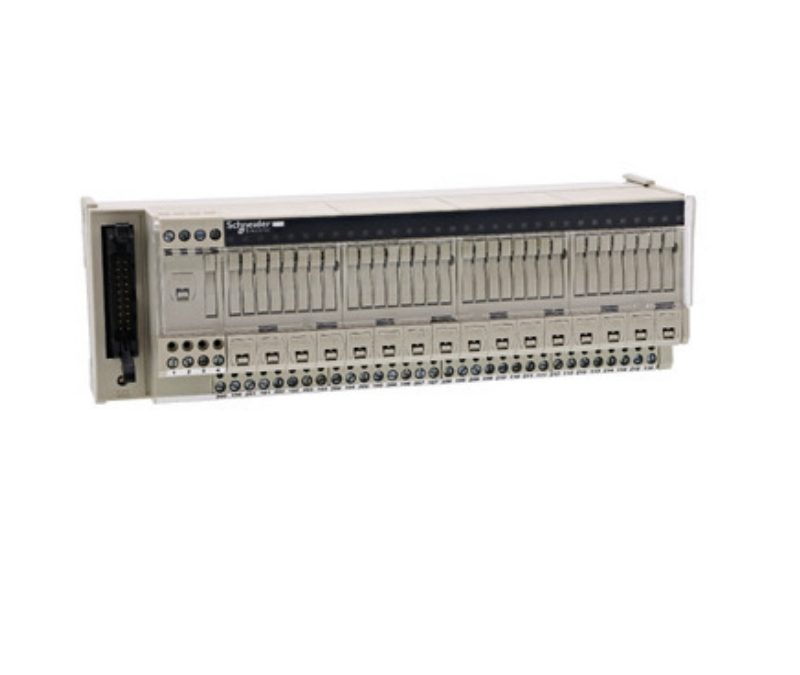

ABE7H16F43 Schneider passive connection sub-base
Model: ABE7H16F43 Schneider passive connection sub-base
Main Range of product Modi…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Range of product | Modicon ABE7 |
|---|---|
| Product or component type | Passive discrete I/O sub-base |
| Sub-base type | Output sub-base |
| [Us] rated supply voltage | 19…30 V conforming to IEC 61131-2 |
| Number of channels | 16 |
| Number of terminal per channel | 2 |
| Maximum supply current | 1.8 A |
|---|---|
| Current per channel | 0.125 A |
| Maximum current per output common | 1.8 A |
| Voltage drop on power supply fuse | 0.3 V |
| Maximum voltage drop per channel | 2 V |
| [Ui] rated insulation voltage | 2000 V |
| Installation category | II conforming to IEC 60664-1 |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Width | 206 mm |
| Net weight | 0.64 kg |
